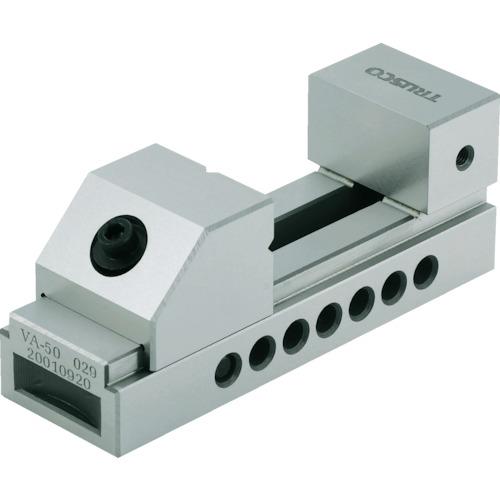

TRUSCO precision vise A type 75 mm lifting prevention structure type

[Features]
●Precision finish of total hardening and total polishing.

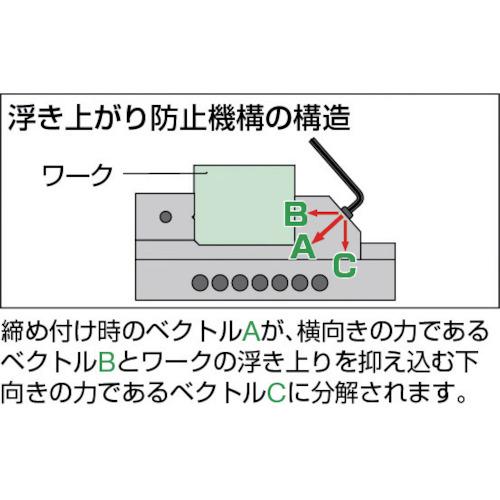

●Long-term accuracy can be maintained due to the lifting prevention mechanism.
● Super-precision machining is achieved with outstanding squareness and parallelism.

[Use]
●Fixed to an electromagnetic chuck for precision machining.

【specification】
-Maximum tightening force (kN): 7.84
- Total length (mm): 189
- Width (mm): 72
-Overall height (mm): 66
- Mouth width (mm): 72
- Mouth opening (mm): 99
- Mouth depth (mm): 34

[Specification 2]
●Perpendicularity within ±0.005mm/100mm
● Parallelism within ±0.005mm/100mm

[Material/Finish]
Body: Carbon Tool Steel (SKS-93) (Hardness HRC56-60)

[Set contents/accessories]
-

【Note】
-
