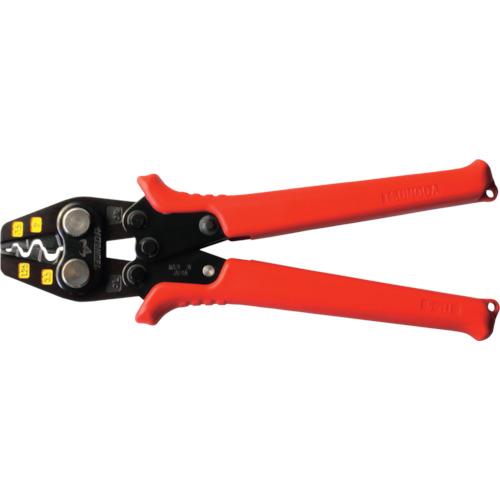

TTC crimping tool TP-3 for bare crimp terminals and bare crimp sleeves

[Features]
●The built-in forming confirmation mechanism makes the crimping mark clear, preventing mistakes.
● Temporary holding is possible and work proceeds smoothly.
●Lightweight and compact type, 3.5sq wire can be crimped with one hand.
●The toggle mechanism reduces the required grip force per unit stroke.
●The handle does not open until crimping is completed.
●Double-sided color markers improve work efficiency.
● Elastomer grip is gentle on the hands, so continuous work is not tiring.
●The grip has a strap attachment hole.
●Necessary crimping force can be easily obtained.

[Use]

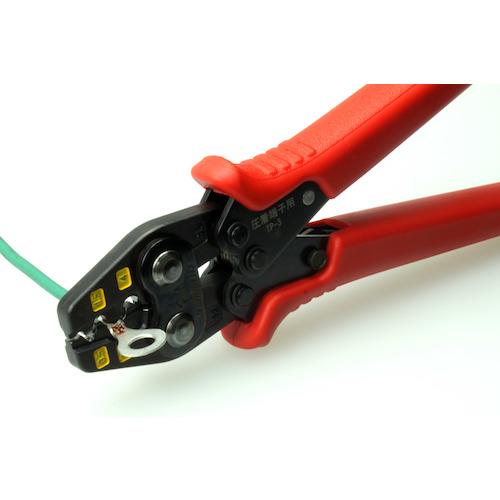

●For crimping and connecting wires using bare terminals and sleeves.

【specification】

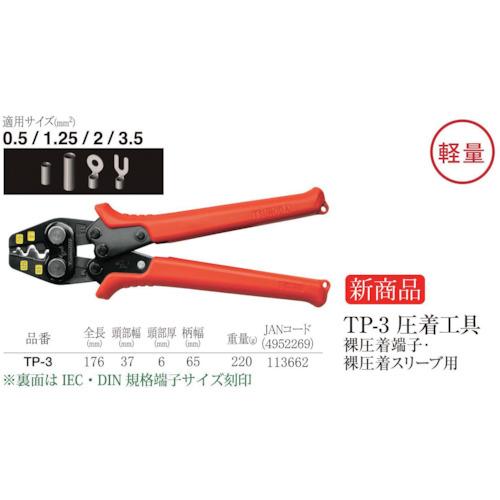

- Total length (mm): 176

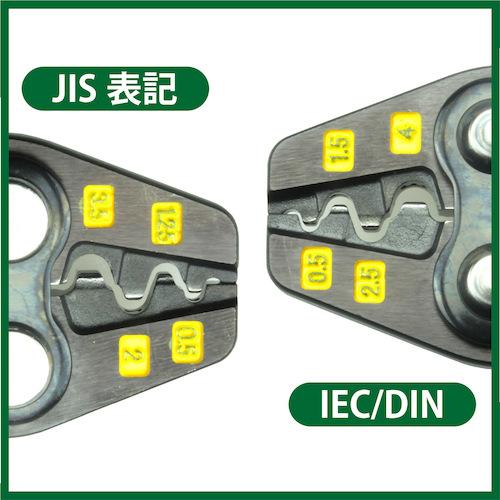

●Crimp terminals ([[MM2]]) for bare terminals: 0.5, 1.25, 2, 3.5
- Head width (mm): 37
-Handle width (mm): 65
- Head width (mm): 37

[Specification 2]
-

[Material/Finish]
-Body: carbon steel for mechanical structure
-Grip: Elastomer resin
-Head: Chrome molybdenum steel

[Set contents/accessories]
-

【Note】
●It is a non-insulated tool. Please turn off the power before use.
●Do not use for purposes other than intended use.
● See notes on other product mounts.
