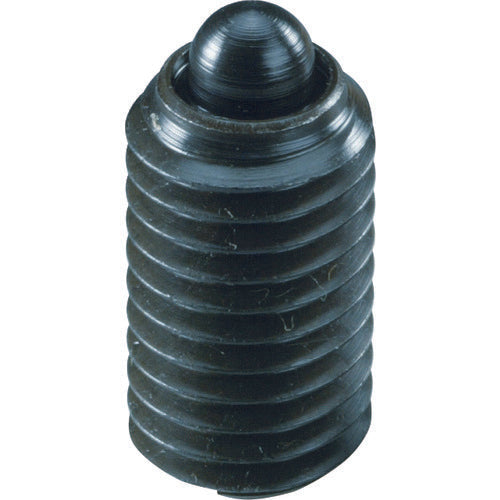

kipp short plunger (for heavy loads, made of steel) M16

[Features] ● Can be installed in narrow spaces due to its short overall length.

[Use] ●Positioning parts such as indexers and stoppers.

[Specifications] ● Load (N): 45 to 100 ● Screw dimensions: M16 x 2.00 ● Stroke (mm): 4.5 ● Overall length (mm): 24 ● Center pin diameter (mm): 8.5 ● Heat resistant temperature (°C): 100

[Specification 2]
-

[Material/Finish] ●Body: Steel ●Center pin: Steel

[Set contents/accessories]
-

【Note】
-
