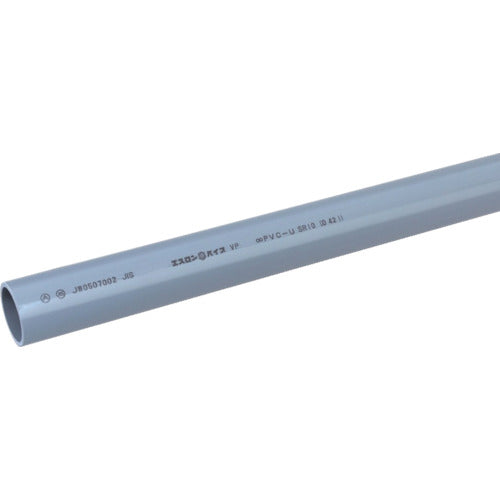

ESLON VPW Pipe 13 1.0m

[Features] ● Manufactured from pure rigid vinyl chloride, it is harmless to the human body and does not add color or odor to water. ●Does not contain lead. ●Use TS fittings.

[Applications] ● Water supply equipment in buildings, etc.

[Specifications] Nominal diameter (mm): 13 L (mm): 1000 D (mm): 18 t (mm): 2.5 Maximum operating pressure (MPa): 1 Operating temperature range (°C): 5 ~40 ● Maximum operating temperature (°C): 50°C ● Color: gray ● Material: rigid vinyl chloride pipe (PVC)

[Specification 2] ●Maximum working pressure: 1.0MPa ●Operating temperature range: 5 to 40℃ ●No pressure drainage working temperature range: 5 to 60℃ ●JIS K6742 standard product

[Material/Finish] Hard polyvinyl chloride (PVC)

[Set contents/accessories]
-

[Caution] ●Each dimension has a tolerance. ● Please use the standard construction method. ● Please be sure to refer to the notes on installation, performance and safety in the catalog reference materials. ●The pressure resistance of resin products decreases as the temperature rises.
