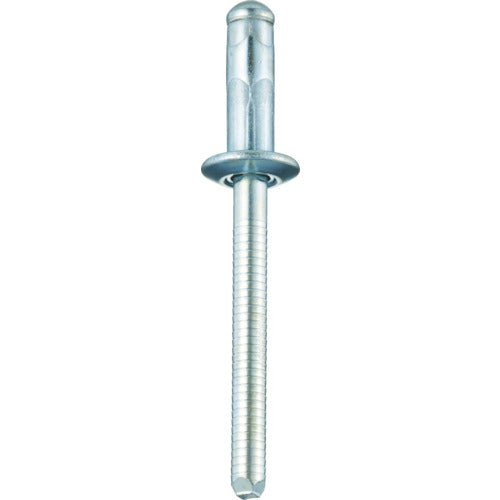

POP high pressure HR rivet (all iron) φ4.0, SD54HR (1000 pieces)

[Features] ● A rivet that can generate high crimping force between base materials. ●The buckling diameter is wide, and high tensile strength can be obtained even with a thin base material.

[Applications] ● Automobile sheet metal, electrical sheet metal, etc.

[Specifications] - Crimp plate thickness (mm): 4.8 - 6.4 - Rivet length (mm): 15.7 - Flange diameter (mm): 8 - Rivet diameter (mm): 4 - Pilot hole diameter (mm): 4.2 - Reference shear Strength (N): 2000 ● Reference Tensile Strength (N): 2600 ● Quantity per box (pieces): 1000

[Specification 2]
-

[Material/Finish] ● Rivet body (flange): Steel (SWCH) ● Mandrel (shaft): Steel

[Set contents/accessories]
-

【Note】
-
