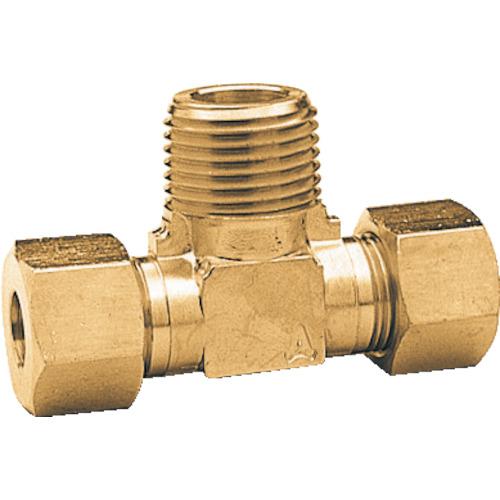

ASOH two-way ring cheese PT1/4XΦ6

[Features]
-

[Applications] Coupling for copper pipes.

[Specifications] ● Applicable copper tube outer diameter (mm): 6 ● Screw: R1/4 ● Width across flats (mm): 17 ● Dimensions (mm) L: 50 ● Dimensions (mm) L1: 22

[Specification 2] Fluid used: water, air, oil Fluid temperature: -50 to 150°C Operating pressure: 3.45 MPa

[Material/Finish] Brass (C3604, C3771)

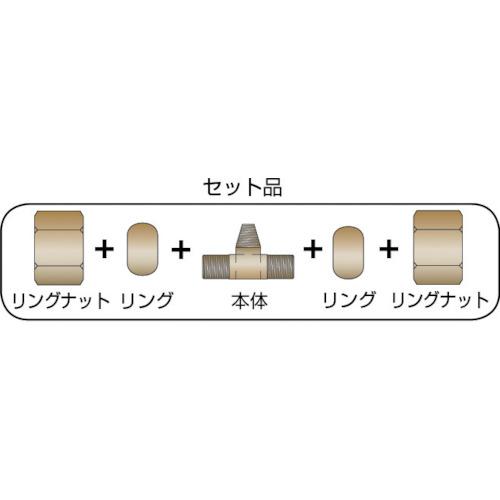

[Set contents/accessories]
-

[Caution] ●Not compatible with refrigerant gas.
