KAMEKURA Less Barrier Port Puncher (Double Action)

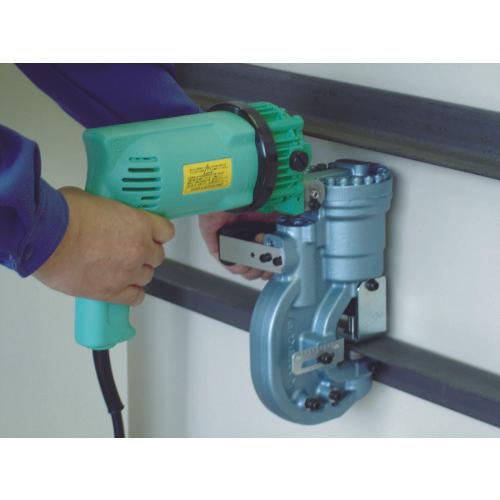

[Features] ● A double-acting auto-return mechanism that smoothly separates the material. ●If there is a small space, it can be processed even if it is already installed on the wall or in a narrow and complicated place. (Body angle adjustable/vertical/45°/90°) ●Barrier-free double-acting type puncher. ●It is a workpiece receiver with a center that is convenient for positioning.

[Use] ● For drilling shaped steel such as angles, channels, and flat bars. ●Drilling of channel steel (channel), angle steel (angle), and flat steel (flat bar).

[Specifications] - Maximum drilling capacity (mm) stainless steel: t6 x φ20 - Maximum drilling capacity (mm) iron: t9 x φ20 - Pocket size (mm): 50 - Output load kN (t): 196 (20)

[Specification 2] ● Frame depth: 50 mm from the axis ● Drilling time: Approx. 3 seconds ● Power supply: AC 100 V ● Power consumption (rated): 580 W ● Drive system: Electro-hydraulic double-acting auto-return ● Body dimensions: (height) 484 x (width) 133 x (depth) 213mm Power cord: 3m

[Material/Finish] Alloy steel

[Set Contents/Accessories] ●Work stand ●Exclusive wrench ●Hex wrench ●Storage case ●Spare blades: N-11, N-14, N-11X18, N-14X18

【Note】
-
