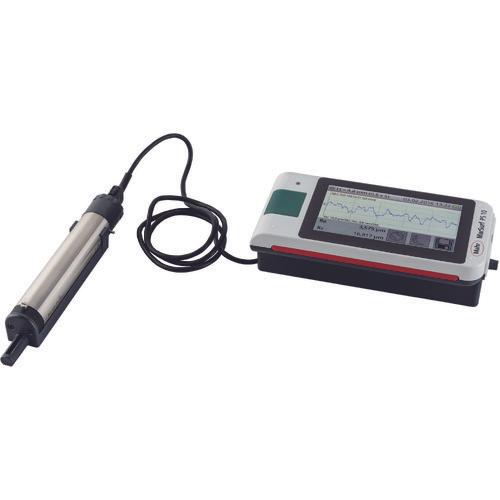

Merle portable surface roughness measuring instrument (6910230)

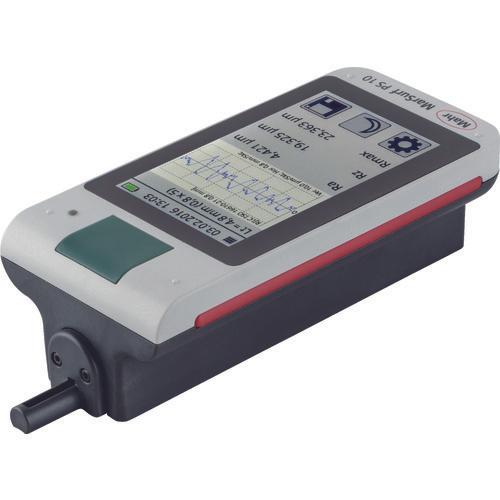

[Features] ● Compact and lightweight portable surface roughness measuring instrument. ●Smartphone format for easy operation. ●Large 4.3 inch TFT illuminated touch clean display. (with rotation function) ●Measurement data is saved in the device. (TXT, X3P, CSV, PDF file formats) ●With 31 types of parameters, it provides the same range of functions as measuring instruments in calibration laboratories. ●When you press the start button, the initial screen is displayed directly. ● Standard and ISO/JIS compliant parameters and parameter lists can be evaluated. ●The built-in rechargeable battery enables up to 1200 measurements on a single charge. ●Roughness standard piece can be built in or removed. (For standard pickup PHT 6-350) ●Removable UNIT for increased flexibility.

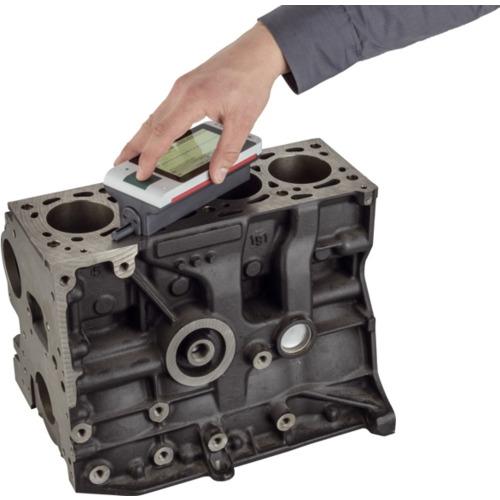

[Applications] ● For measuring shafts and housings, measuring large machines, measuring large workpieces, inspecting processing machines, checking and inspecting incoming products, and measuring surface roughness at work sites.

[Specifications] ● Manufacturer code: 6910230 ● Power supply (V): 100 to 264 ● Measurement range (μm): 350 ● Roughness curve resolution (nm): 8 ● Favorite functions can be called directly ● Power supply

[Specification 2] ● Memory capacity: 3900 shapes, maximum 500000 measurement results, 1500 pdf files (microSD card memory can be expanded up to 32 GB) ● Interface: USB, MarConnect (RS232/USB), microSD (SD [[TM]]] /SDHC card maximum 32GB) ●Asymmetrical tolerance line setting for peak count possible ●Standard selectable (DIN-ISO/JIS/ASME/MOTIF) ●Automatic cutoff selectable to ensure accurate measurement results ●Settings Can be protected with a password. Can output the date and time of measurement. Can store about 500000 measurement results, 3900 profiles and 1500 pdf files in the built-in memory. Can transfer data to a PC via USB or microSD card. PC can be connected by MarCom software

[Material/Finish]
-

[Set Contents/Accessories] ● UNIT ●Standard pickup: PHT 6-350 ●Built-in battery ●Roughness standard piece built into the housing ●Pickup protective cover ●Charger/power adapter ●Carrying case with shoulder strap ●USB Cable ● Extension cable UNIT ● Height adjustment accessories
