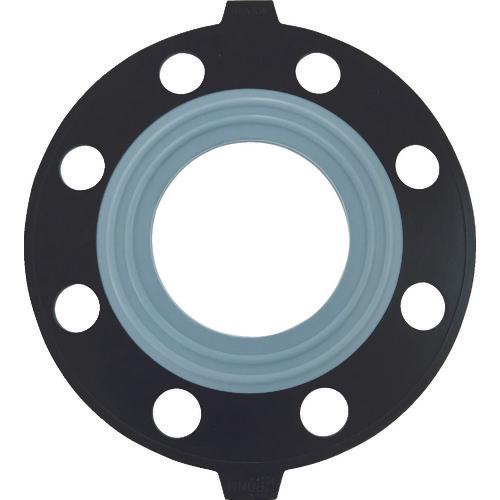

ESLON PTFE (Teflon) packing 80A IS 10K

[Features]● Highly corrosion-resistant and highly chemical-resistant packing with EPDM base and PTFE coating. ● Demonstrates reliable sealing performance with double round projection ribs.

[Uses] ●Chemical factory chemical piping, semiconductor factory pure water piping, fishery factory seawater piping, food factory wastewater treatment lines, etc.

[Specifications] - Inner diameter (mm): 80 - Outer diameter (mm): 183 - Thickness (mm): 3 - Bolt hole center diameter (mm): 150 - Number of bolt holes: 8 - Bolt hole diameter (mm): 19 ● Nominal diameter: 3B ● Number of holes: 8 ● Size ● Materials ● Recommended tightening torque 52 N・m ● Center circle diameter (C) 150 mm

[Specification 2] ● JIS10K specifications ● Operating temperature range: 0 to 100°C ● Food Sanitation Law elution test passed ● For full-face seats ● Maximum allowable pressure: 1.0 MPa (at 20°C)

[Material/Finish] Polytetrafluoroethylene (PTFE)

[Set contents/accessories]
-

【Note】
-
