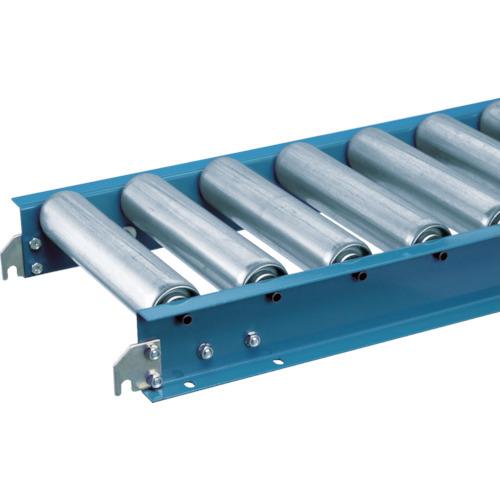

MISUZU Silent Roller Conveyor MS57S Type Φ57.2 Width 300 1.5M P75

[Features] ● Silent type conveyor. ●It is a roller that rotates smoothly and quietly. - It is a smooth and quiet roller that uses special JIS bearings. ●Noise is cut by about 35% compared to normal roller conveyors. (compared to our company)

[Use] ● Night work place. ●As an in-vehicle conveyor. ● Noise countermeasures in general factories.

[Specifications] ● Pitch (mm): 75 ● Roller diameter (mm): 57.2 ● Roller load capacity (kg/roll): 130 ● Machine length (mm): 1500 ● Thickness (mm): 2.1 ● Frame: 90 x 30 ×3.2t

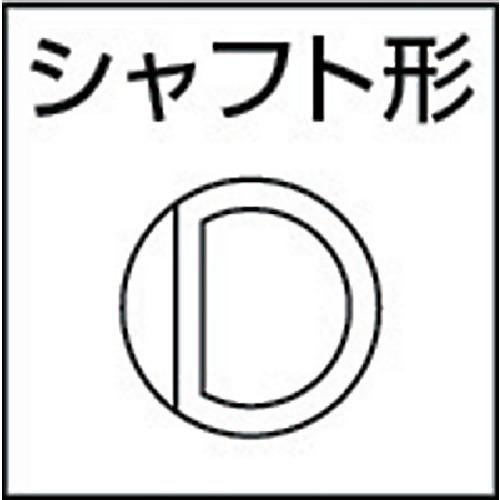

[Specification 2] ● Shaft: Φ12 pipe ● JIS bearing ● Frame allowable load on the floor: 1600 kg/M

[Material/Finish] - Frame: Steel - Roller: Carbon steel pipe for machine structure

[Set contents/accessories]
-

[Caution] ●There is an error between the nominal pitch and the actual dimensions.
