MITSUBISHI MST AR Carbide End Mill MS4MC General Purpose 4 Flute (Middle Flute Length) φ20

[Features] ● A series that uses MS coating to achieve cost performance. ● Can be used for a wide range of materials, from raw materials to high-hardness steel and difficult-to-cut materials.

[Applications] ●Work material: carbon steel, alloy steel, tool steel, pre-hardened steel, high-hardness steel (up to 55HRC), austenitic stainless steel, heat-resistant alloy, copper alloy.

[Specifications] ● Number of flutes: 4 ● Blade diameter (mm): 20 ● Blade length (mm): 50 ● Overall length (mm): 110 ● Shank diameter (mm): 20 ● Surface treatment: (Al, Ti) N coating (MS)

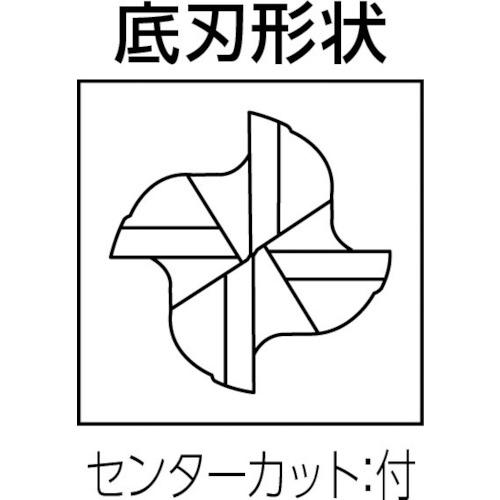

[Specification 2] ● Torsion angle 30° ● Center cut: Included

[Material/Finish] Ultra-fine particle cemented carbide (UWC)

[Set contents/accessories]
-

【Note】
-
