Taica anti-vibration material insulator MN-7 M6mm 5.5-8.5kg

[Features] ●Since the natural frequency is designed to be low, vibration isolation in the low frequency range is possible. -It is a type in which bolts are integrally molded on the upper and lower surfaces. ● Vibration isolation for equipment weighing 1.6 to 100 kg with 4-point support.

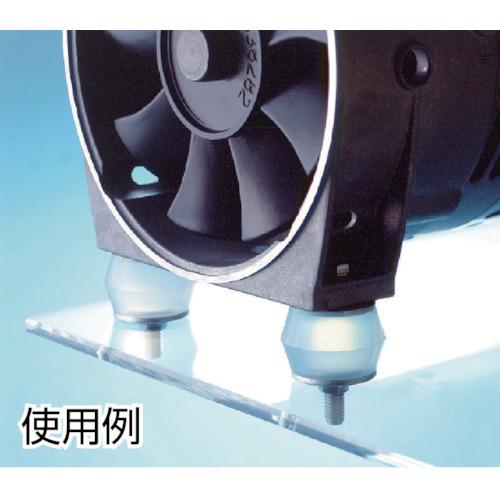

[Applications] ● Anti-vibration for pumps, compressors, precision instruments and measuring instruments.

[Specifications] - Recommended frequency (Hz): 16 - - Proper load (kg): 5.5 - 8.5 - Gel height (mm): 22 - Screw size: M6 - Overall height (mm): 58

[Specification 2]
-

[Material/Finish] Rubber: Silicone gel Bolt: Iron (trivalent chromate plating)

[Set contents/accessories]
-

【Note】
-
