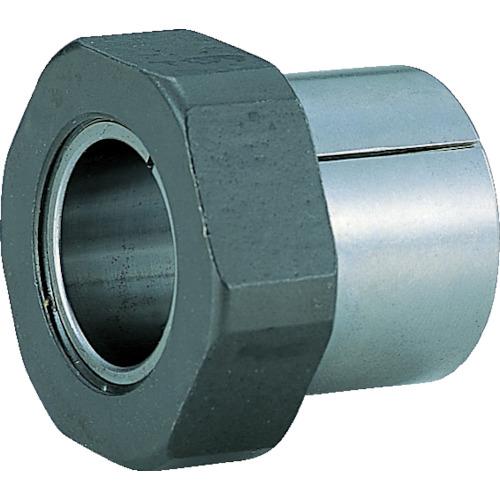

ISEL Mechalock MN series inner diameter 14

[Features]● Can be attached and detached simply by tightening and loosening the nut, making attachment and detachment extremely easy. ●There is a centering function. ●Positioning and phasing can be performed at any position, and backlash-free fastening is possible.

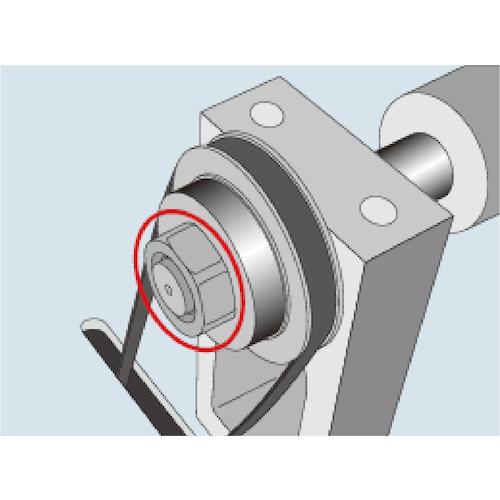

[Applications] ● For thin hubs and light torque areas.

[Specifications] - Inner Diameter (mm): 14 - Outer Diameter (mm): 23 - Length (mm): 15 - Allowable Maximum Torque (N・m): 88.3 - Allowable Thrust (N・m): 12.3 - Two sides Width dimension (mm): 30

[Specification 2] ●Nut tightening type ●Operating temperature range: -20 to 100℃

[Material/Finish] Steel

[Set contents/accessories] Separate fare

【Note】
-
