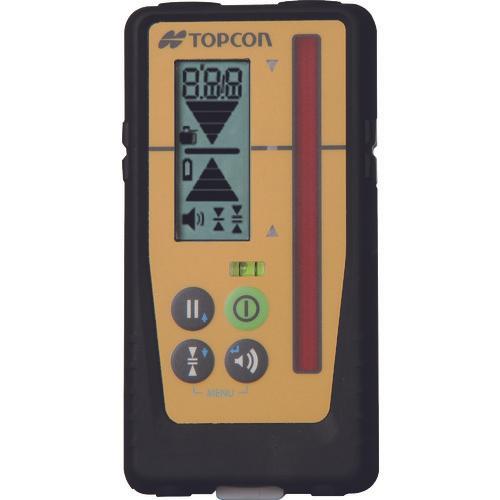

TOPCON Digital Receiver LS-100D

[Features] ● Receiver for rotating laser. ●(3-color display: orange ▼, green center, red ▲) ●Auto power off: Approximately 30 minutes. ●Buzzer sound: strong/weak/OFF. ●Body warning notification: High alert, low battery warning.

[Applications] ● Receiver for rotating lasers.

[Specifications] - Height (mm): 135 - Width (mm): 69 - Accuracy of light reception: ±1 mm - Thickness (mm): 25 - Continuous use time: about 45 hours of continuous use of alkaline batteries (+20°C)

[Specification 2] ● Protection grade: IP57 ● Power supply: AA batteries x 2 (sold separately) ● Applicable model: Rotating laser (RL-H5A only) ● Power supply: AA batteries x 1 Usage time (+20 degrees) ): Approx. 45 hours (when using alkaline batteries) ●Battery level warning: LCD display Operating temperature range: -20°C to +50°C ●Level display: 9 levels + failure display. ●Resolution: 0.5mm/1.0mm/2.0mm/5.0mm/10.0mm ●Display: 1 LCD front and back ●JIS C0920

[Material/Finish]
-

[Set contents/accessories]
-

【Note】
-
