KTC 9.5sq. Composite mini type mini ratchet

[Features] ● The body is lightweight with a full composite housing. ●Equipped with a regulator mechanism that can adjust the rotation speed. ● Rotation can be fine-tuned by pulling the throttle lever. - Compact size with short overall length and easy to hold. ● The twin endurance mechanism improves the durability of the ratchet part.

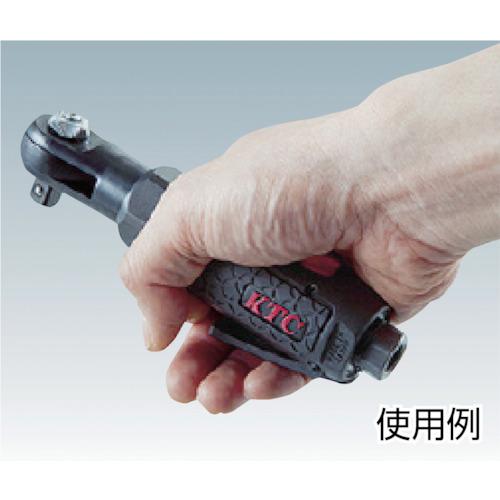

[Use] ● For work in narrow places with limited work space.

[Specifications] ● Capacity bolt diameter (mm): 10 ● Socket insertion angle (mm): 9.5 ● Maximum tightening torque (N m): 40 ● No-load rotation speed (min [[-1 power]]) : 250 ●Air consumption ([[M3]]/min): 0.32 ●Hose mounting port: PT1/4 ●Exhaust: rear ●Overall length (mm): 166 ●No-load rotation speed (rpm): 250 ●Capacity bolt diameter

[Specification 2] ●Using air pressure: 0.6 to 0.7MPa ●Using air hose inner diameter: 6.5mm or more

[Material/Finish]
-

[Set Contents/Accessories] ● Air coupler ● Oil for air tools

[Caution] ●The tightening torque is a reference value. The torque value changes depending on the conditions.
