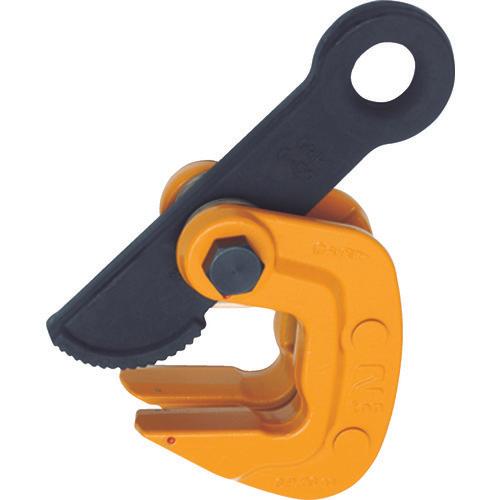

SUPER TOOL horizontal horizontal lifting clamp (clamping range: 0 to 50mm)

[Features]● Due to the action of the spring, there is no need to hold the clamp by hand when attaching it. Also, the clamp does not come off even under no load. ●It is a mechanism that increases the grip force more strongly in proportion to the lifting load.

[Applications] ● Horizontal (horizontal) hanging clamp for steel plates, flat plates, steel plates, H-shaped steel, etc.

[Specifications] ● Basic working load (t): 2.0 ● Clamping range (mm): 0 to 50 ● Dimensions (mm) D: 30 ● Dimensions (mm) H: MAX.268 ● Dimensions (mm) H2: 73 ● Dimensions (mm) L: 125

[Specification 2] ● Easy safety inspection, safety point attached to the body ● Crack at the tip of the lower jaw (split into 2) type

[Material/Finish]
-

[Set contents/accessories]
-

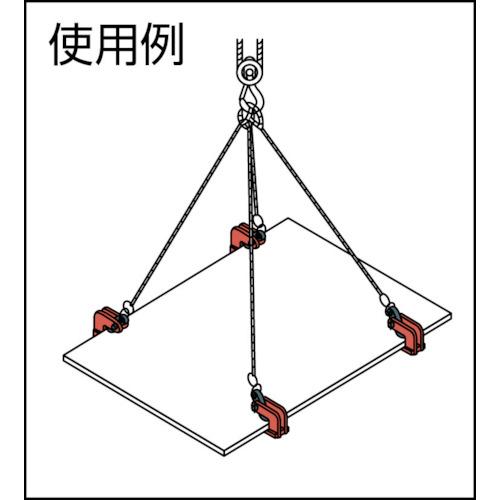

[Caution] ●Do not use more than the specified capacity. ● Be sure to use two or more units.
