TRUSCO GWS type workbench 1800X750XH740 with 3 drawers

[Features]

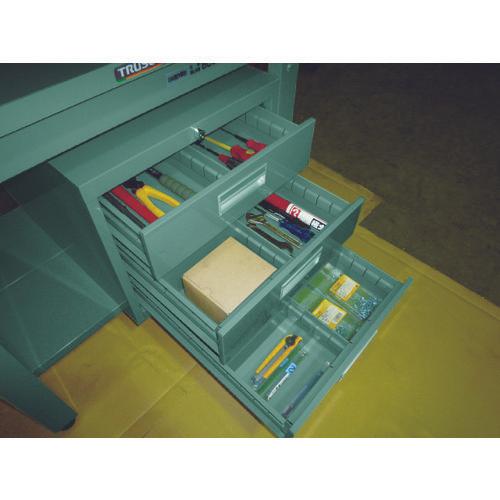

●The space under the workbench can be effectively utilized with two lower shelves, and tools can be managed in a cabinet with three drawers of the same depth.
● The welded structure of the main part makes it strong and durable.
●The hexagon socket head bolts are used, so the bolts are easy to tighten and can be easily assembled with a single hexagon wrench.
-The mounting position of the lower horizontal bar can be changed according to the usage conditions and the options to be used.
● Uses a DAP resin top plate, has a warm appearance, and has excellent oil and chemical resistance. In addition, the surface is smooth and hard, making it resistant to warping and cracking.

[Use]
-

【specification】
-Adjuster screw size: M16 x 2.0
-Cabinet: 1 row 3 steps D-3Z with key
- Depth (mm): 750
- Lower shelf: HLT type (2 pieces)
- Frontage (mm): 1800
- Uniform load (kg): 800
- Height (mm): 740

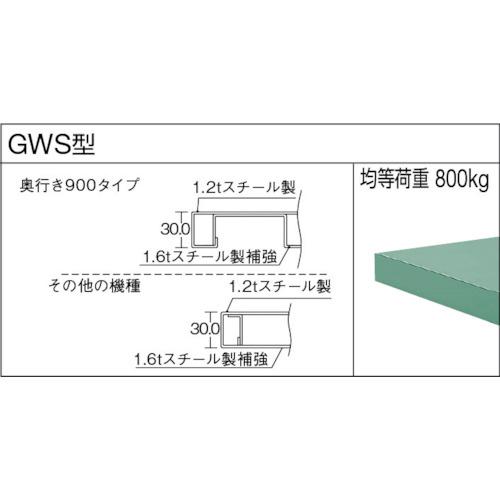

Top plate material: steel
Color: green

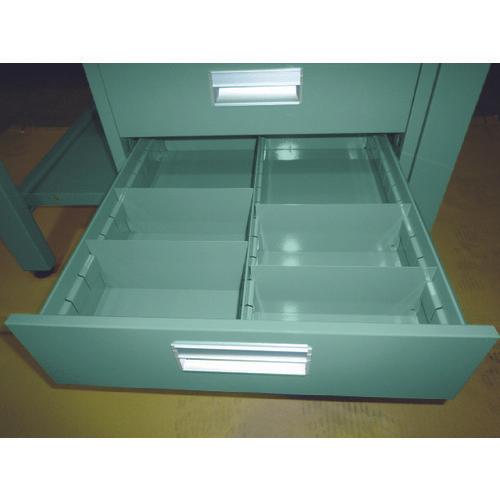

-Drawer inner dimensions (mm) frontage x depth x depth: 370 x 454 x 83

[Specification 2]
●Adjuster adjustment range: 20mm

[Material/Finish]
Body: Steel

[Set contents/accessories]
-

【Note】
●Can be attached to depths other than 450 and 600 mm types.

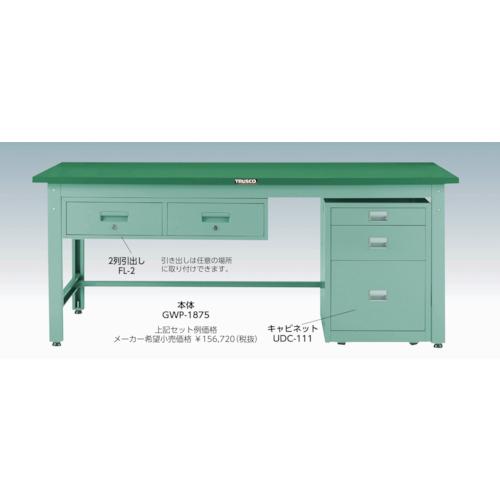

●One cabinet can be installed for the 900mm frontage type, two for the 1200mm and 1500mm frontage types, and three for the 1800mm frontage type.
●Two lower shelves are required to attach the cabinet to the workbench. (It is included in the following part numbers.)
●Because it is handed over on the vehicle, unloading is required by the customer.
