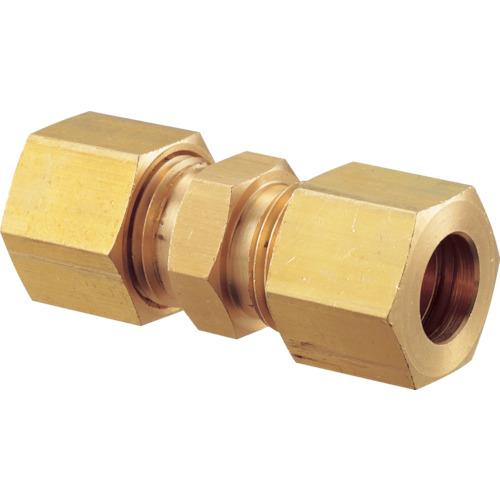

FUJITOKU Special Brass Flared Union Φ8 Copper Pipe Bite Fitting

[Features]●The cutting edge of the ring-shaped sleeve bites into the pipe (holding the pipe), and the curved portion is crimped by the strong spring action (maintaining the sealing performance), preventing loosening of the nut.

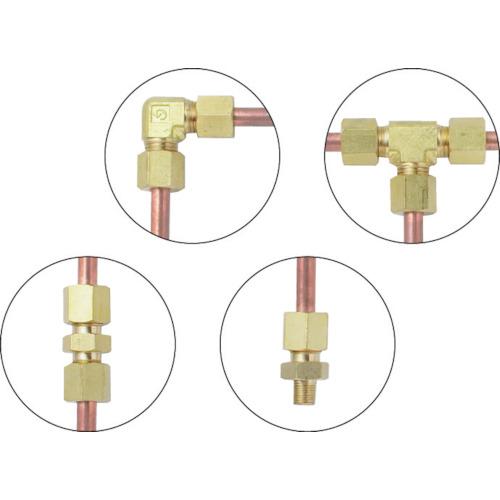

[Applications] Coupling for copper pipes.

[Specifications] ● Applicable copper tube outer diameter P (mm): 8 ● L (mm): 53 ● Screw: ー ● Opposite side of hexagon (mm): 17 ● Maximum working pressure (MPa): 15 ● Applicable fluid: oil/steam・Water Liquid temperature (°C): -20 to 150°C

[Specification 2] Fluid used: oil, steam, water Fluid temperature: -20 to 150°C Working pressure: 15 MPa

[Materials/Finish] Body: Free-cutting brass rod (C3604 BD-F) Nut: Brass rod for forging (C3771 BD)

[Set contents/accessories]
-

【Note】
-
