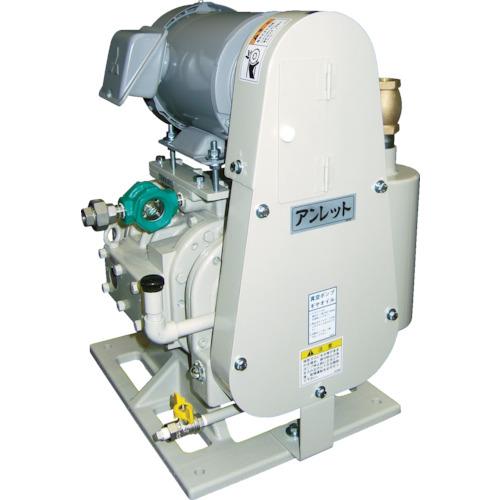

ANLET roots type dry vacuum pump

[Features]
●Because it is completely dry, water does not come out on the discharge side.
● High ultimate pressure is obtained, and stable performance is demonstrated in a wide pressure range.
● Three-lobed roots type with perfect dynamic balance for low noise and low vibration.
●Oil mist is not mixed into or emitted from the product.

[Use]
● For vacuum drying of water-based and hydrocarbon-based washers.
● For food vacuum packaging.
●For adsorption, dehydration and degassing.
● For resin molding and extruders.

【specification】
●Exhaust speed (L/min) 50/60Hz: 5230
Ultimate pressure (Pa): 20
- Intake diameter (mm): 80
-Power supply (V): Three-phase 200/4P
- Noise level (dB): 83
- Overall width x total length x total height (mm): 912 x 949 x 1006
-Dimensions (mm): 912 x 949 x 1006

[Specification 2]
●No thermal protector
Fully enclosed fan cooled indoor motor IE3
●Water-cooled
Cooling water volume (l/min): 2
● Supports different voltages from one unit
