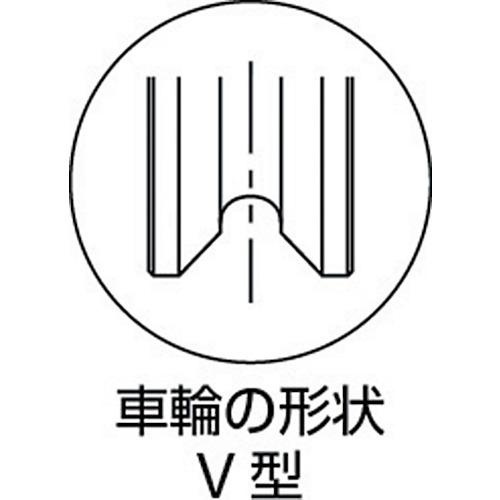

MALCON MALCON framed heavy vehicle 60mm V type

[Features] ● The wheels are made of ductile cast iron, which is stronger than ordinary cast iron.

[Use] ● For angle and flat bars.

[Specifications] - Allowable load (daN): 122 - Allowable load (kgf): 125 - Wheel diameter (mm): 60 - Wheel width (mm): 20 - Mounting height H (mm): 69.0 - Mounting seat A (mm) ): 100 ● Mounting seat B (mm): 32 ● Mounting pitch X (mm): 70 ● Mounting hole diameter P (mm): 15 x 11 ● Allowable load (N): 1226

[Specification 2] Wheel only (C-2100)

[Materials/Finish] ●Frame: Steel ●Frame surface treatment: Chromate plating finish ●Wheels: Ductile cast iron (FCD-450)

[Set contents/accessories]
-

[Note] ● Allowable load is a reference value in the vertical direction.
