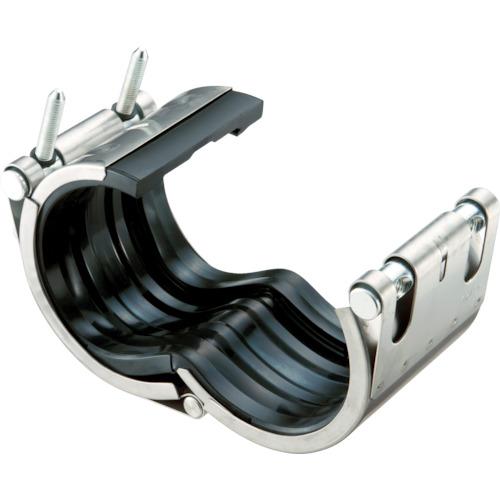

SHO-BOND Coupling Strub/Clamp C Type 100A For Water/Hot Water

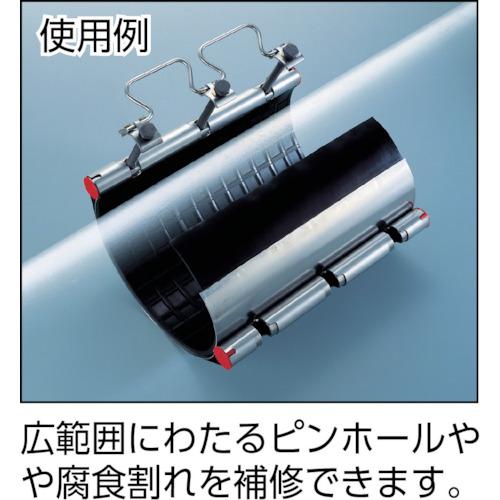

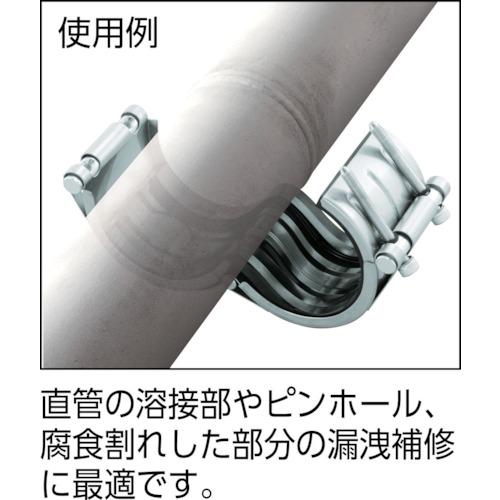

[Features] ●Ideal for repairing leaks in straight pipe welds, pinholes, and corrosion-cracked areas. ●You can work without stopping the fluid. ●Because of its lightweight and integrated structure, it can be installed safely without parts falling off.

[Use] ● For repairing various pipes.

[Specifications] - Casing width (mm): 92.5 - Rubber lip spacing (mm): 50 - Applicable fluids: water, hot water, air, chemicals - Standard torque value (N m): 15 - Tightening hexagon socket bolt hole size ( mm): 6 - Tightening bolt hexagon size (mm): -

[Specification 2] Applicable piping: Carbon steel pipe for piping/VLP/PLP/stainless steel pipe/steel size PE pipe Fluid temperature: -30 to 100°C Operating pressure: Liquid/1.0 MPa, gas such as air/0.7 MPa Japan Water Works Association certified product

[Materials/Finish] - Casing: Stainless steel (SUS304) - Bolt: Chromoly - Rubber: EPDM

[Set contents/accessories]
-

【Note】
-
