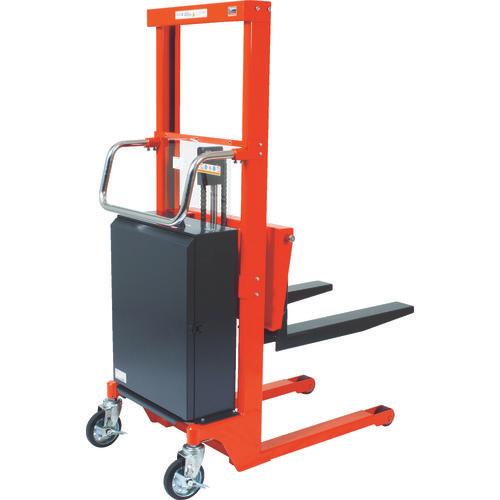

TRUSCO kozo lifter soins creer type H75-1200 electric lifting type

[Features]
● STANDARD type that can be used for a wide range of applications.
●Equipped with an automatic charger that can be charged anytime, anywhere. (AC100V)
●It is with a battery residual quantity meter that it is easy to look at.
● Flexible handling with a uniquely shaped plated handle.
●Equipped with an overload prevention valve.
- The mast with a new structure reduces rattling and realizes smooth lifting.
●BEN-DW type widens the inner width of the legs so that it can scoop 1100 pallets.

[Use]
● Lifting and transporting luggage.

【specification】
- Uniform load (kg): 400
- Load center distance (mm): 350
-soins creer dimensions (mm) width x length: 100 x 700
● soins creer dimensions (mm) slide outer width: 215 to 578
-Overall height (mm): 1621
-soins creer height (mm): 75-1200
Rise time (seconds) when no load: 10
Rise time (seconds) at full load: 14

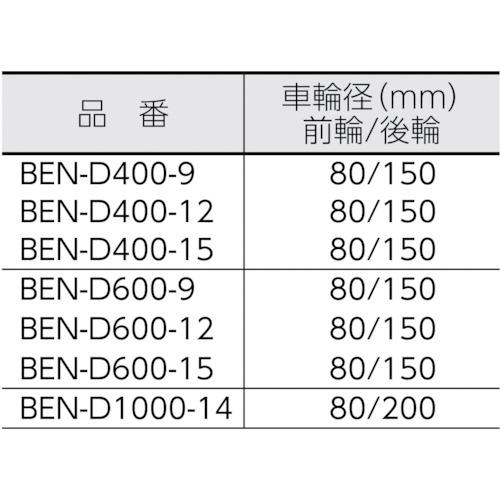

-Wheel diameter (mm) front/rear wheels: 80/150
- Lifting method: battery hydraulic type (turbine oil: using ISO-VG32)
- Front wheels: 2 fixed urethane casters, rear wheels: 2 rubber casters with flexible stoppers
- Charger power supply: single phase 100 V (cord length: 2 m)
●Charging time: about 10 hours
- Equipped battery: EB65
- Stroke (mm): 1125

[Specification 2]
- L height (mm): 94.0
- Power source battery: EB65
- Power source motor (kw): 0.7
-Manual running type
● With battery level gauge
Quality assurance period: 1 year

[Material/Finish]
-

[Set contents/accessories]
-

【Note】
●Because it is handed over on the vehicle, unloading is required by the customer.
●When you put soins creer on your leg, the minimum height will increase.
