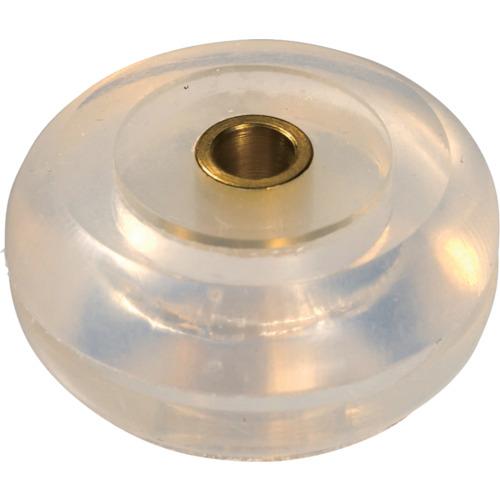

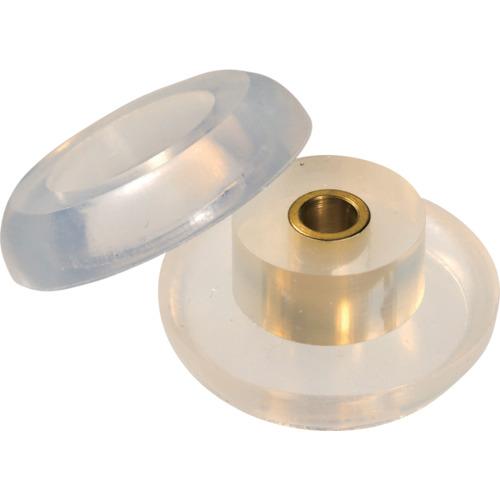

Taica anti-vibration gel bush B-1 φ4mm 1.00-3.75kg

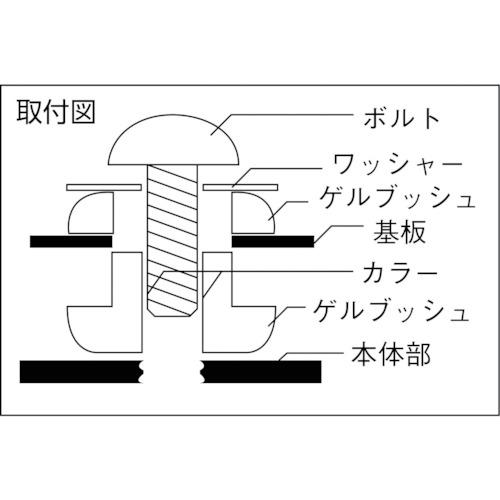

[Features] ● Allows the bolt to pass through, minimizing sideways movement. ●Ideal for vibration isolation and buffering of lightweight and fragile objects such as printed circuit boards. ● Supports equipment weighing 0.2 to 32 kg with 4-point support, and eliminates minute vibrations.

[Applications] ● Anti-vibration and cushioning for printed circuit boards. ● Anti-vibration for fans and small drives.

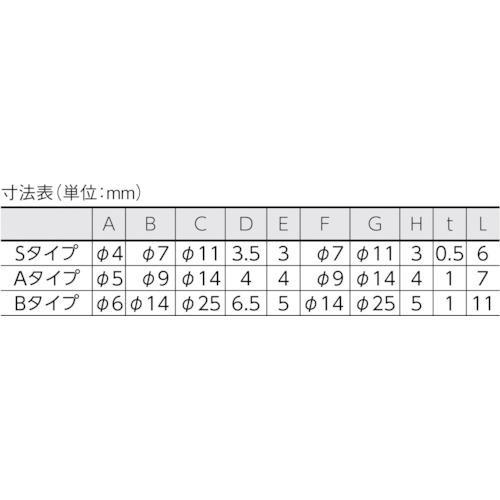

[Specifications] ● Recommended frequency (Hz): 70 at 1.00 kg / 35 at 3.75 kg ● Appropriate load (kg): 1.00 to 3.75 ● Gel height (mm): 11.5 ● Total height (mm): 11.5 ● Usage Thread size: M4 or less

[Specification 2]
-

[Material/Finish] Rubber: Silicone gel Color: Brass

[Set contents/accessories]
-

【Note】
-
