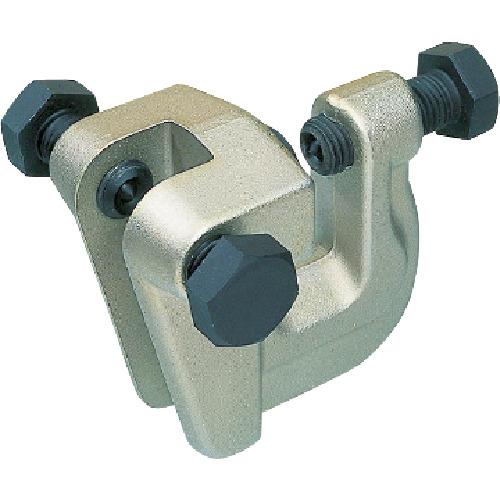

SUPER TOOL Iron Man (narrow clamping fitting for temporary construction) L type bolt across flats 36 type

[Features]
●Compared to conventional welding and bolt joints, work time is greatly reduced.
●Strongly and securely clamps steel materials without loosening bolts.

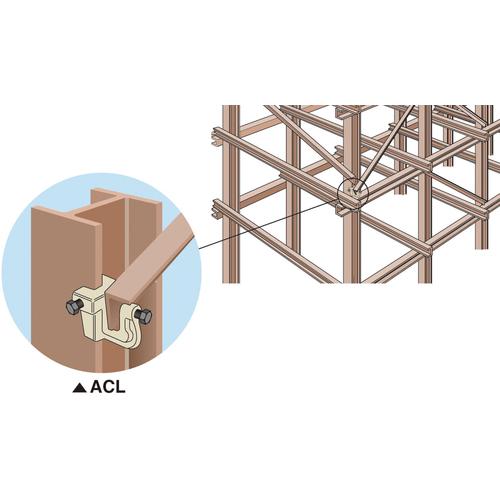

● The H steel of the column is sandwiched in the A part, and the L-shaped steel of the brace is sandwiched in the B part.

[Use]
● Access gantry, overbridge, workbench, scaffolding, support and maintenance pedestal, gantry, temporary bridge, etc.
●Mainly for boltless clamping of temporary structures.

【specification】
- Total length (mm): 148
-Overall height (mm): 140
-Clamp range (mm): (A) 9 to 22 (H-type steel side), (B) 5 to 19 (angle side)
- Guaranteed load (kN): 70
- Bolt tightening force (N m): 294
-Bolt: M24, hexagonal width across flats 36mm
- Maximum mouth opening (mm): -
●Futokoro (mm):-

[Specification 2]
-

[Material/Finish]
●Special steel

[Set contents/accessories]
-

【Note】
-
