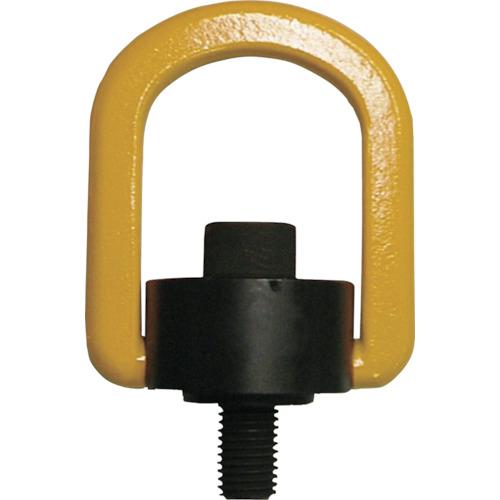

MARTEC Fleno Link Bolt Hex Socket Type A-12E

[Features]● A hexagonal wrench compatible type that always faces the load direction.

[Applications] ● For horizontal hanging and reversing of molds and concrete products.

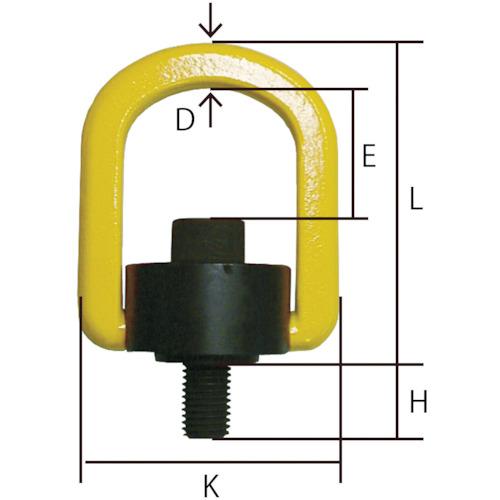

[Specifications] ● Basic working load (t): 0.8 ● Bolt size: M12 ● D (mm): 17 ● H (mm): 19 ● L (mm): 102 ● Dimensions (mm) D: 17 ● Dimensions (mm) )E: 52 ● Dimensions (mm) H: 19 ● Dimensions (mm) K: 89 ● Dimensions (mm) L: 112 ● Breaking load (kN): 39.2 ● Bolt size (mm): M12

[Specification 2] ● Flexible eyebolt ● Safety factor of 5 or more in all directions

[Material/Finish] Special alloy steel

[Set contents/accessories]
-

【Note】
-
