[Features]● Attracts and sucks the surrounding air, enabling a large volume air blow. ●The amplification ratio is 1:6. (0.69 MPa) ●Wide-angle nozzle (full-angle 15°) is good at blowing over a wide area. ●Capacity can be adjusted by increasing or decreasing the number of built-in gaskets.

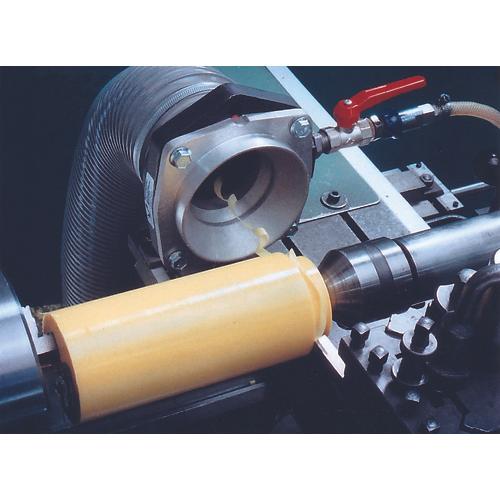

[Use] ● Air blow: chips, cleaning, smoke ● Conveyance: foam material, waste paper, food materials, capsules, powder ● Suction: chip collection, hole cleaning, exhaust, smoke exhaust ● Drainage: various rod shapes (passing through the inner diameter ) Suction + blow: chemical spray
[Specifications] ● Nozzle diameter (mm): φ32 ● Nozzle mounting port: NPT-1/4 ● Working air pressure (MPa): 0.29 to 0.69 ● Total length (mm): 64 ● Maximum working pressure: 1 MPa ● Air consumption ( NL/min): 240 to 480 - Minimum diameter (mm): φ20 - Amplification ratio (0.69 MPa): 1:6
