ROEMHELD lift module Shop floor Maximum load 4,000N Stroke 300mm

[Features]
●It helps reduce the burden on workers and build an effective assembly process.

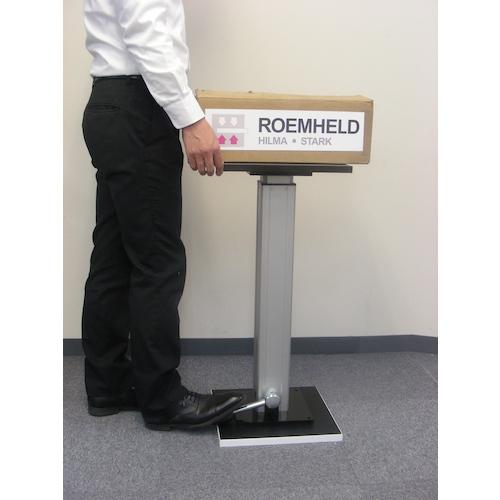

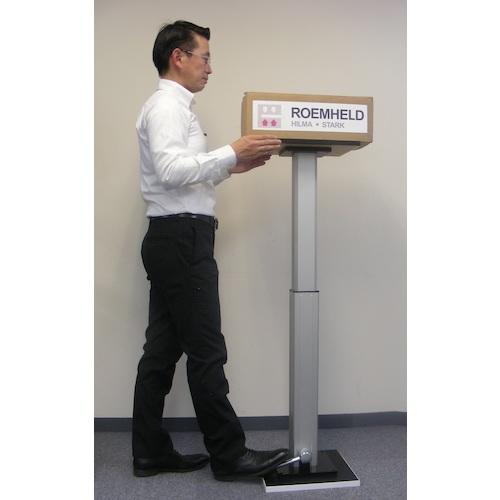

● Step on the pedal to ascend, and lightly lift the pedal to descend.
● Helps to ensure the safety of workers and reduce the burden on them during assembly work such as handling heavy objects.
● Easy to handle.
●External energy is not required.

[Use]
●For heavy work.
● For adjusting the height of the workbench.
●For maintenance and inspection.
●For assembly jigs.
●For adjusting the height of the transfer line.
●For packing and transporting products.
●For assembly work.
● For medical equipment, industrial assembly jigs, workbenches, and display stands.

【specification】
- Table dimensions (mm) width x length: 170 x 170
- Table height (mm): 520
- Number of steps (times): 7 times (100mm)
●Fast forwarding device: None
- Stroke (mm): 300
Lifting method: Foot pedal type
● Maximum load (kg): 400
- Stroke (mm): 300

[Specification 2]
● Can be combined with other modules
●Maximum load 6000N

[Material/Finish]
-Lift module side: aluminum, aluminite treatment
- Top and side plates: aluminum, black aluminite treatment
