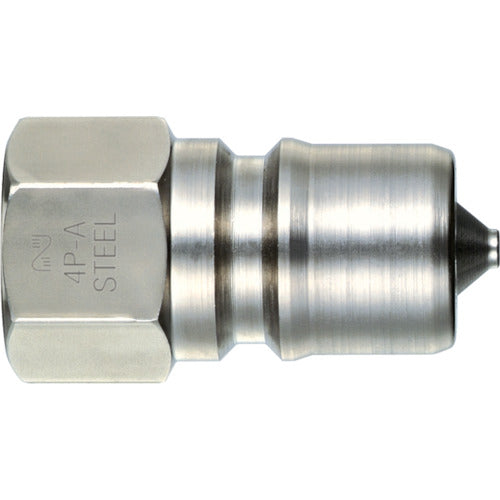

NITTO SP Coupler Type A Steel Nitrile Rubber NBR (SG) Mating Size R1/2 (07912) 7912 NITTO

[Features]
The smooth shape of the plug tip makes connecting to a socket smoother and more comfortable.
The valve's automatic return to center function improves sealing performance after separation.

[Applications]
-

【specification】
Pressure resistance (MPa): 6.5
Counterpart mounting size: R1/2
Fluids used: air, gas, hydraulic oil
Maximum operating pressure (MPa): 4.5
Operating temperature range (℃): -20 to 80
Total length (mm): 44
Compatible coupler: NITTO SP-A coupler series

[Specification 2]

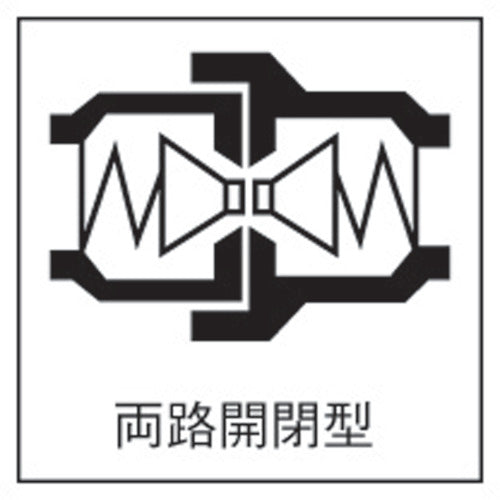

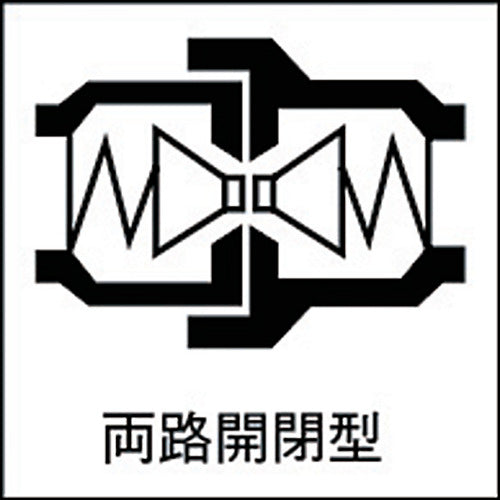

Both ways open/close type

[Material/Finish]
Body: Steel (nickel plated)
Seal rubber: Nitrile rubber (NBR)

[Set contents/accessories]
-

【Note】
-
