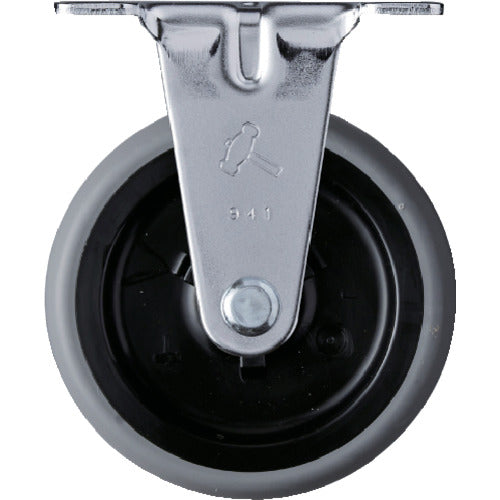

HAMMER CASTER Stationary elastomer wheels (PP wheels) 75mm 420ER-L75 HAMMER CASTER

[Features]
This is a cost-effective model that uses elastomer material to solve marking issues.
It achieves a soft and quiet driving performance that cannot be achieved with hard wheels.
RoHS compliant.

[Applications]
-

【specification】
Wheel diameter D(mm): 75
Type: Fixed
Allowable load (daN): 40
Allowable load (kgf): 40.8
Wheel width(mm):21

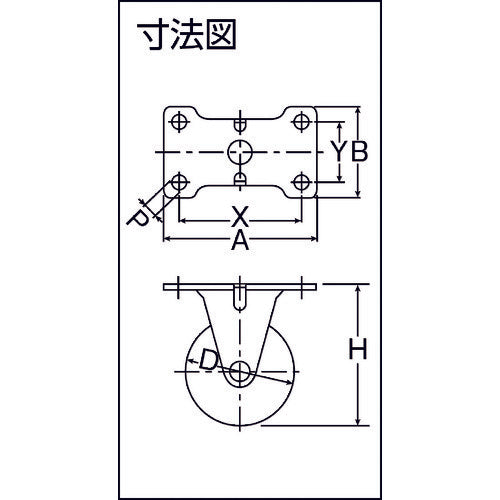

Mounting height H(mm): 92
Mounting seat A(mm): 70
Mounting seat B(mm): 42
Mounting pitch X(mm): 56
Mounting pitch Y(mm): 28
Mounting hole diameter P(mm): 6.5
Mounting height (mm): 92
Mounting base (mm): 70 x 42
Mounting dimensions (mm): 56 x 28
Mounting hole diameter (mm): 6.5

[Specification 2]
Fixed
Plate Type

[Material/Finish]
Metal fittings: Steel
Metal fittings surface treatment: Chrome plating finish
Wheels: Elastomer

[Set contents/accessories]
-

【Note】
-
