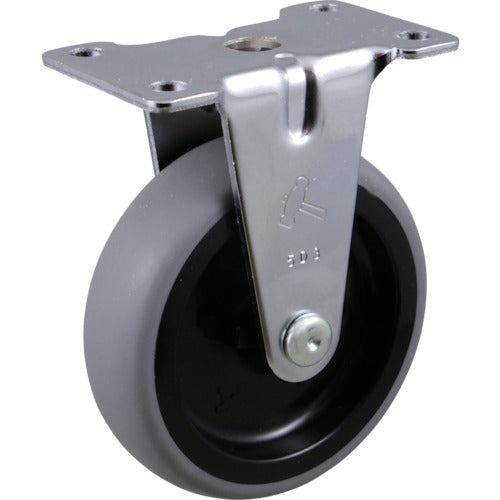

HAMMER CASTER fixed type elastomer wheel (PP wheel) 65mm

[Features]
It is a cost performance model that solves the marking problem with elastomer material.
Realized soft and quiet running performance not found in hard wheels.
RoHS compliant product.

[Use]
-

【specification】
Allowable load (daN): 30
Allowable load (kgf): 31
Wheel diameter D (mm): 65
Wheel width (mm): 21
Mounting height H (mm): 82
Mounting seat A (mm): 70
Mounting seat B (mm): 42
Mounting pitch X (mm): 56
Mounting pitch Y (mm): 28
Mounting hole diameter P (mm): 6.5
Mounting height (mm): 82
Mounting seat (mm): 70 x 42
Mounting dimensions (mm): 56 x 28
Mounting hole diameter (mm): 6.5

[Specification 2]
fixed
plate type

[Material/Finish]
Hardware: Steel
Metal fittings surface treatment: Chrome plating finish
Wheels: Elastomer

[Set contents/accessories]
-

【caution】
-
