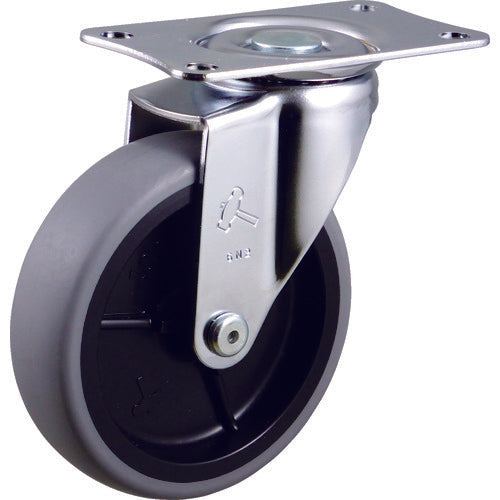

HAMMER CASTER turning type elastomer wheel (PP wheel) 100mm

[Features]
It is a cost performance model that solves the marking problem with elastomer material.
Realized soft and quiet running performance not found in hard wheels.
RoHS compliant product.

[Use]
-

【specification】
Allowable load (daN): 50
Allowable load (kgf): 52
Wheel diameter D (mm): 100
Wheel width (mm): 27
Mounting height H (mm): 122
Mounting seat A (mm): 100
Mounting seat B (mm): 58
Mounting pitch X (mm): 82
Mounting pitch Y (mm): 40
Mounting hole diameter P (mm): 8.8
Mounting height (mm): 122
Mounting seat (mm): 100 x 58
Mounting dimensions (mm): 82 x 40
Mounting hole diameter (mm): 8.8

[Specification 2]
Flexible
plate type

[Material/Finish]
Hardware: Steel
Metal fittings surface treatment: Chrome plating finish
Wheels: Elastomer

[Set contents/accessories]
-

【caution】
-
