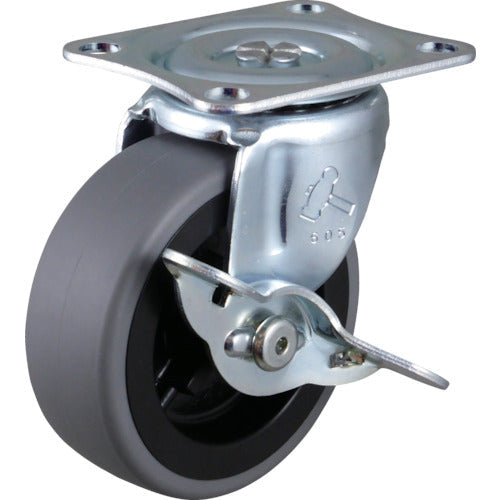

HAMMER CASTER G series swivel type elastomer wheel (PP wheel) 75mm with stopper

[Features]
It is a cost performance model that solves the marking problem with elastomer material.
Realized soft and quiet running performance not found in hard wheels.
RoHS compliant product.

[Use]
-

【specification】
Allowable load (daN): 50
Allowable load (kgf): 52
Wheel diameter D (mm): 75
Wheel width (mm): 27
Mounting height H (mm): 90
Mounting seat A (mm): 70
Mounting seat B (mm): 58
Mounting pitch X (mm): 55
Mounting pitch Y (mm): 42
Mounting hole diameter P (mm): 8.8
Mounting height (mm): 90
Mounting seat (mm): 70 x 58
Mounting dimensions (mm): 55 x 42
Mounting hole diameter (mm): 8.8

[Specification 2]
Free type (with stopper)
plate type

[Material/Finish]
Hardware: Steel
Metal fitting surface treatment: trivalent chromium conversion treatment
Wheels: Elastomer

[Set contents/accessories]
-

【caution】
-
