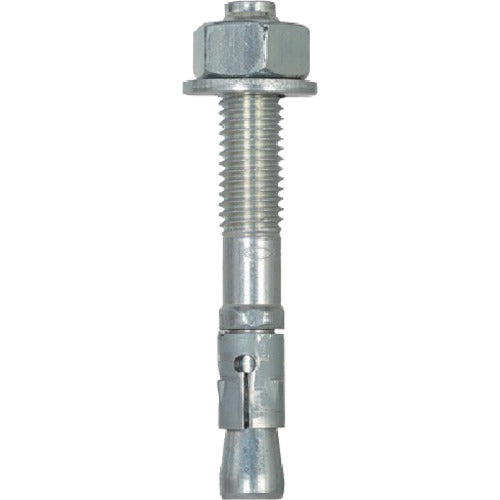

[Features] This is a wedge-type anchor for standard concrete that offers excellent cost performance. Shallow embedment allows for shallow drill hole depths, reducing interference with reinforcing bars and enabling faster construction. International certifications ensure maximum safety and top performance.

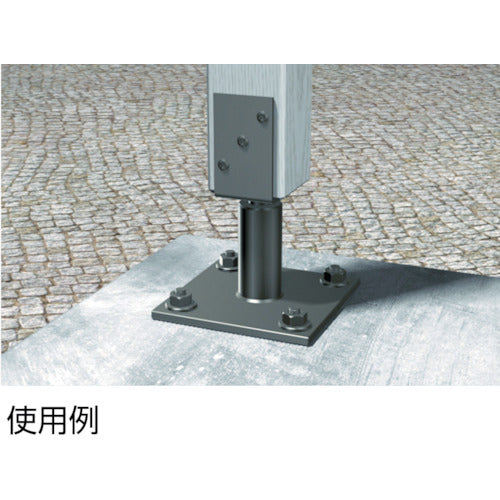

[Applications] For concrete and dense stone. Installation of various racks. Facility construction. Handrail exterior construction, etc.
【specification】 Thread size: M10 Thread length (mm): 36 Total length (mm): 76 Maximum thickness of attachment (mm): 10 Drill diameter (mm): 10 Standard installation torque (N・m): 30 Maximum tensile load (kN): 15.8 Maximum shear load (kN): 17.0 Effective embedment depth (mm): 40 Embedded depth (mm): 68 Pilot hole diameter (mm): 10
[Specification 2] European Technical Approval (ETA-07/0211) Boxed
