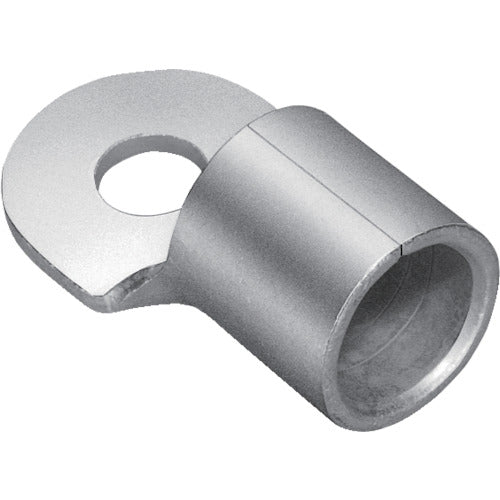

JST Round Terminal 325-8 (1 piece) 325-8 JST

[Features]
This is a bare crimp terminal with a round contact surface (tongue) and mounting holes for screw fixing.

[Applications]
Used to connect soft copper stranded wire or solid wire.

【specification】
Wire confinement range Single wire (mm): 17.5 to 20.3
Wire clamping range: Stranded wire (mm2): 242.27-325
Wire clamping range AWG: 600/650MCM

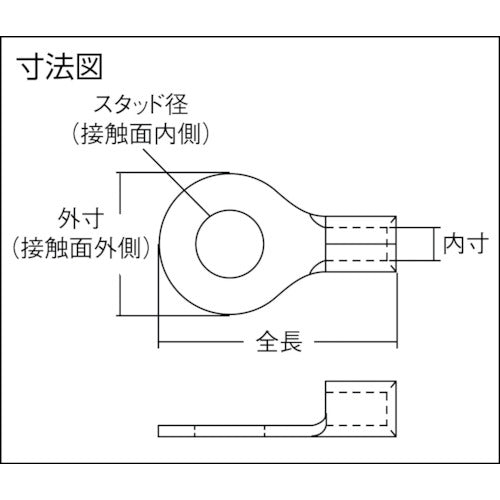

Outer diameter (mm): 50.5
Stud diameter (mm): 8.4
Total length (mm): 88.0
Inner dimensions (mm): 28
JIS standard product: ×
Color: Silver

[Specification 2]
Round

[Material/Finish]
Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating

[Set contents/accessories]
-

【Note】
-
