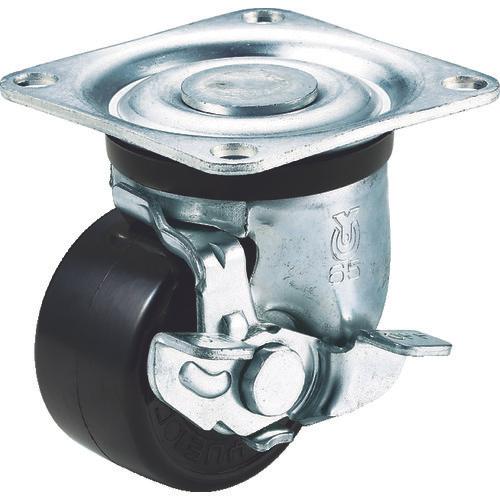

Swivel wheel with caster S for YUEI weight 65 diameter phenol wheel

[Features] ● Casters for heavy loads with low mounting height. ● Prevents deformation of wheels due to long-term heavy loads.

[Applications] ●Ideal for transporting and installing machinery and equipment.

[Specifications] - Allowable load (daN): 300 - Allowable load (kgf): 306 - Wheel diameter D (mm): 65 - Wheel width (mm): 38 - Mounting height H (mm): 92 - Mounting seat A ( mm): 90 ● Mounting seat B (mm): 90 ● Mounting pitch X (mm): 71 ● Mounting pitch Y (mm): 71 ● Mounting hole diameter P (mm): 10.5 ● Allowable load (N): 2500

[Specification 2] ● Flexible type (with stopper) ● Plate type ● Bearing included

[Materials/Finish] ●Metal fittings: Steel ●Metal fitting surface treatment: trivalent unichrome finish ●Wheels: phenolic resin

[Set contents/accessories]
-

【Note】
-
