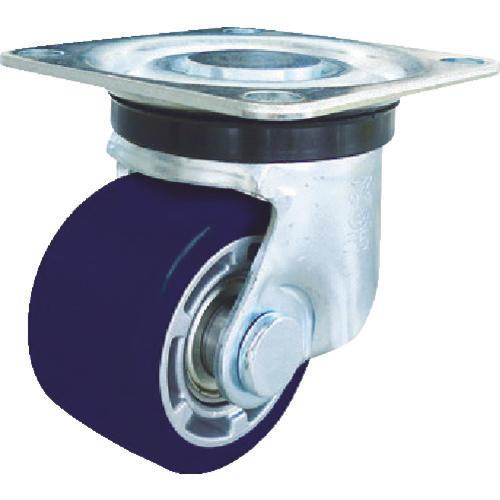

YUEI heavy weight caster flexible wheel 65 diameter aluminum foil urethane wheel

[Features] ● Casters for heavy loads with low mounting height. -Uses aluminum foil urethane wheels that are sturdy and have high running performance.

[Applications] ●Ideal for transporting and installing machinery and equipment.

[Specifications] - Allowable load (daN): 300 - Allowable load (kgf): 306 - Wheel diameter D (mm): 65 - Wheel width (mm): 38 - Mounting height H (mm): 92 - Mounting seat A ( mm): 90 ● Mounting seat B (mm): 90 ● Mounting pitch X (mm): 71 ● Mounting pitch Y (mm): 71 ● Mounting hole diameter P (mm): 10.5 ● Allowable load (N): 3000

[Specification 2] ● Plate type ● Radial ball bearing included ● Flexible type

[Material/Finish] ●Metal fittings: Steel ●Metal fittings surface treatment: trivalent unichrome finish ●Wheels: aluminum wheels, thermosetting urethane

[Set contents/accessories]
-

【Note】
-
