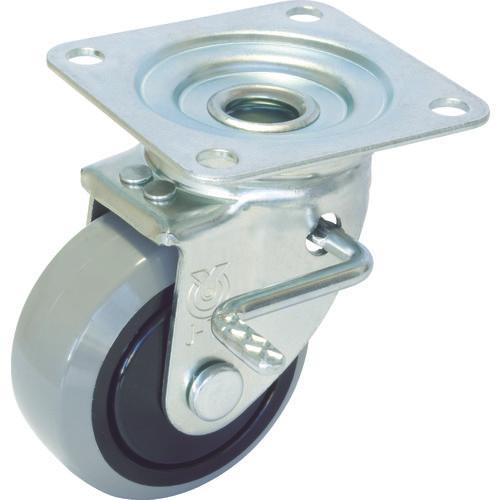

YUEI Industrial Caster Right S Swivel Wheel 75 Diameter Nylon Wheel Urethane Wheel

[Features] ● Standard large casters, often used for transporting heavy objects. ●By using nylon for the wheel part, it is finished in light weight.

[Use] ●Roll box pallet, trolley.

[Specifications] - Allowable load (daN): 100 - Allowable load (kgf): 102 - Wheel diameter D (mm): 75 - Wheel width (mm): 32 - Mounting height H (mm): 103 - Mounting seat A ( mm): 82 ● Mounting seat B (mm): 82 ● Mounting pitch X (mm): 63 ● Mounting pitch Y (mm): 63 ● Mounting hole diameter P (mm): 9.5 ● Allowable load (N): 1000

[Specification 2] ● Flexible type (with double stopper) ● Simultaneously locks swivel part and wheel ● Plate type ● Bearing included

[Materials/Finish] ●Metal fittings: Steel ●Metal fittings surface treatment: trivalent unichrome finish ●Wheels: nylon wheels, urethane

[Set contents/accessories]
-

【Note】
-
