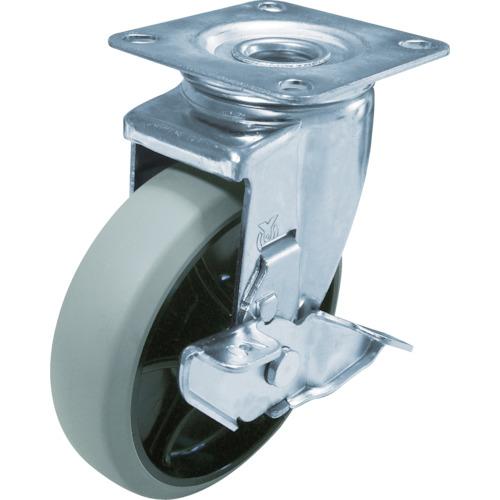

Swivel wheel with caster S for YUEI industry 130 diameter nylon wheel urethane wheel

[Features]●The mounting pitch is free, and the fixed type and the free stopper type are the same. ●Urethane wheels are used, which are lightweight and have excellent oil resistance and wear resistance. ●It is a caster of basket car standard specifications.

[Use] ●Roll box pallet, trolley.

[Specifications] - Allowable load (daN): 160 - Allowable load (kgf): 163.2 - Wheel diameter D (mm): 130 - Wheel width (mm): 40 - Mounting height H (mm): 170 - Mounting seat A ( mm): 102 ● Mounting seat B (mm): 102 ● Mounting pitch X (mm): 75 to 80 ● Mounting pitch Y (mm): 75 to 80 ● Mounting hole diameter P (mm): 11 ● Allowable load (N ): 1600

[Specification 2] ● Flexible type (with stopper) ● Bearing included ● Plate type

[Materials/Finish] ●Metal fittings: Steel ●Metal fittings surface treatment: trivalent unichrome finish ●Wheels: nylon wheels, urethane

[Set contents/accessories]
-

【Note】
-
