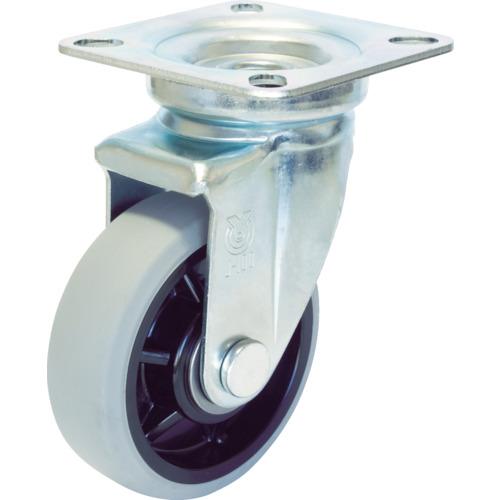

YUEI industrial caster swivel wheel 130 diameter nylon wheel urethane wheel

[Features] ● Standard large casters, often used for transporting heavy objects. ●By using nylon for the wheel part, it is finished in light weight.

[Use] ●Roll box pallet, trolley.

[Specifications] - Allowable load (daN): 180 - Allowable load (kgf): 183.6 - Wheel diameter D (mm): 130 - Wheel width (mm): 40 - Mounting height H (mm): 177 - Mounting seat A ( mm): 105 ● Mounting seat B (mm): 105 ● Mounting pitch X (mm): 75 to 82 ● Mounting pitch Y (mm): 75 to 82 ● Mounting hole diameter P (mm): 11 ● Allowable load (N ): 1800

[Specification 2] ● Flexible type ● Plate type ● Bearing included

[Materials/Finish] ●Metal fittings: Steel ●Metal fittings surface treatment: trivalent unichrome finish ●Wheels: nylon wheels, urethane

[Set contents/accessories]
-

【Note】
-
