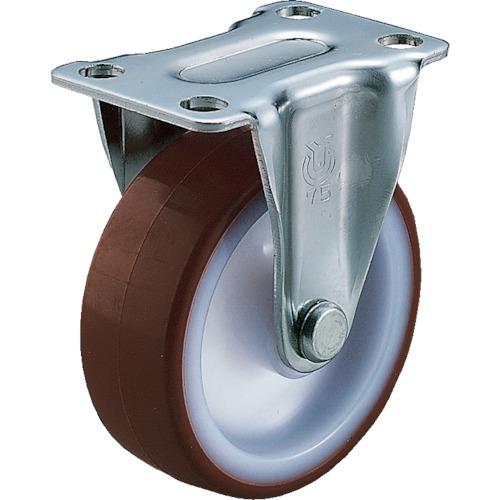

YUEI caster fixed car 65 diameter urethane wheel

[Features] ● A standard compact caster. We have it in stock from the smallest size. ●Urethane wheels are excellent in oil resistance and abrasion resistance.

[Applications] ● Lightweight trolley

[Specifications] - Allowable load (daN): 55 - Allowable load (kgf): 56.1 - Wheel diameter D (mm): 65 - Wheel width (mm): 25 - Mounting height H (mm): 80 - Mounting seat A ( mm): 70 ● Mounting seat B (mm): 47 ● Mounting pitch X (mm): 55 ● Mounting pitch Y (mm): 28 ● Mounting hole diameter P (mm): 8.8 ● Allowable load (N): 560

[Specification 2] Fixed type ● Plate type

[Materials/Finish] ●Metal fittings: Steel ●Metal fittings surface treatment: trivalent unichrome finish ●Wheels: nylon wheels, urethane

[Set contents/accessories]
-

【Note】
-
