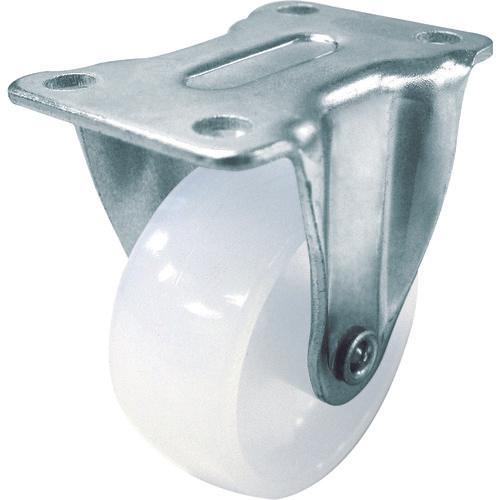

YUEI caster fixed wheel 65 diameter nylon wheel

[Features] ● A standard small caster, available from the smallest size. ●It is a standard small caster. We have it in stock from the smallest size. Nylon wheels with excellent abrasion resistance are used.

[Applications] ● Lightweight trolley, furniture

[Specifications] - Allowable load (daN): 55 - Allowable load (kgf): 56.1 - Wheel diameter D (mm): 65 - Wheel width (mm): 25 - Mounting height H (mm): 80 - Mounting seat A ( mm): 70 ● Mounting seat B (mm): 47 ● Mounting pitch X (mm): 55 ● Mounting pitch Y (mm): 28 ● Mounting hole diameter P (mm): 8.8 ● Allowable load (N): 550

[Specification 2] ●Plate type ●Fixed type ●Metal fittings: Chrome plating

[Material/Finish] ●Metal fittings: Steel ●Metal fittings surface treatment: trivalent unichrome finish ●Wheels: nylon

[Set contents/accessories]
-

【Note】
-
