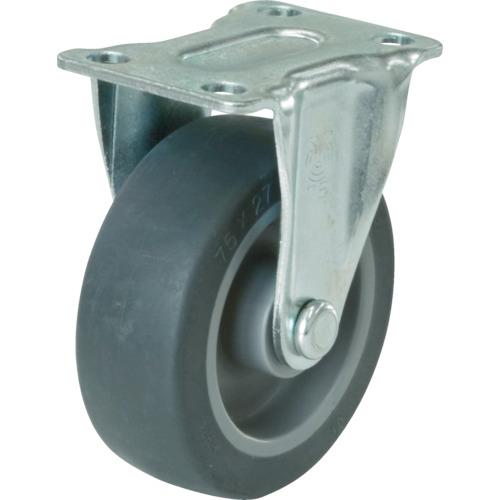

YUEI plate type elastomer caster fixed 50 diameter

[Features] ● A standard compact caster. ●It is a material that does not easily leave marks on the floor. ● Uses elastomer wheels that do not stain the floor.

[Applications] ● Lightweight trolley

[Specifications] - Allowable load (daN): 25 - Allowable load (kgf): 25.5 - Wheel diameter D (mm): 50 - Wheel width (mm): 20 - Mounting height H (mm): 65 - Mounting seat A ( mm): 58 ● Mounting seat B (mm): 40 ● Mounting pitch X (mm): 45 ● Mounting pitch Y (mm): 25 ● Mounting hole diameter P (mm): 6.5 ● Allowable load (N): 250

[Specification 2] ● Plate type ● Fixed type

[Materials/Finish] ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent Uniqlo finish ●Wheels: Elastomer

[Set contents/accessories]
-

【Note】
-
