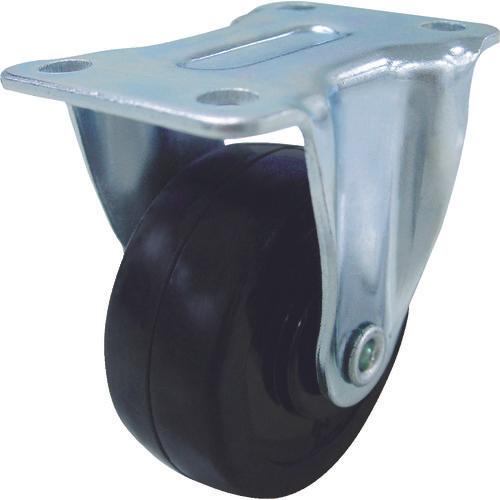

YUEI caster fixed car 32 diameter rubber wheel

[Features] ● A standard compact caster, available from the smallest size.

[Applications] ● Lightweight trolley

[Specifications] ● Allowable load (daN): 12 ● Allowable load (kgf): 12.2 ● Wheel diameter D (mm): 32 ● Wheel width (mm): 14 ● Mounting pitch X (mm): 29 (2 holes) ● Mounting hole diameter P (mm): 4.2 ● Mounting height H (mm): 42 ● Mounting seat B (mm): 20 ● Mounting seat A (mm): 36 ● Allowable load (N): 120

[Specification 2] ●Plate type ●With single bearing ●Fixed type

[Material/Finish] ●Metal fittings: Steel ●Metal fittings surface treatment: trivalent unichrome finish ●Wheels: rubber

[Set contents/accessories]
-

【Note】
-
