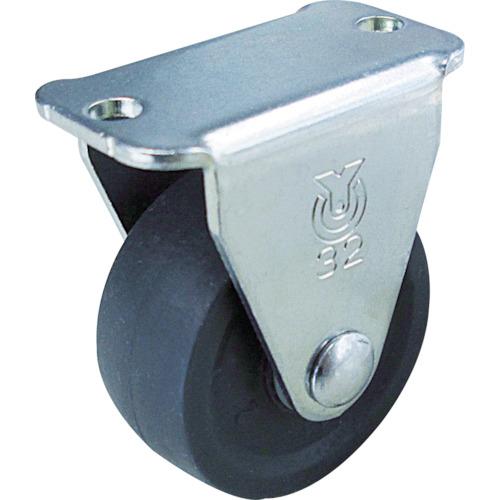

YUEI plate type elastomer caster fixed 25 diameter

[Features] ●The material does not easily leave marks on the floor. ● Uses elastomer wheels that do not stain the floor.

[Applications] ● Lightweight trolley

[Specifications] - Allowable load (daN): 8 - Allowable load (kgf): 8.2 - Wheel diameter D (mm): 25 - Wheel width (mm): 12 - Mounting height H (mm): 35 - Mounting seat A ( mm): 36 ● Mounting seat B (mm): 18 ● Mounting pitch X (mm): 29 ● Mounting pitch Y (mm): 0 ● Mounting hole diameter P (mm): 4.2 ● Allowable load (N): 80

[Specification 2] ● Plate type ● Fixed type

[Materials/Finish] ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent Uniqlo finish ●Wheels: Elastomer

[Set contents/accessories]
-

【Note】
-
