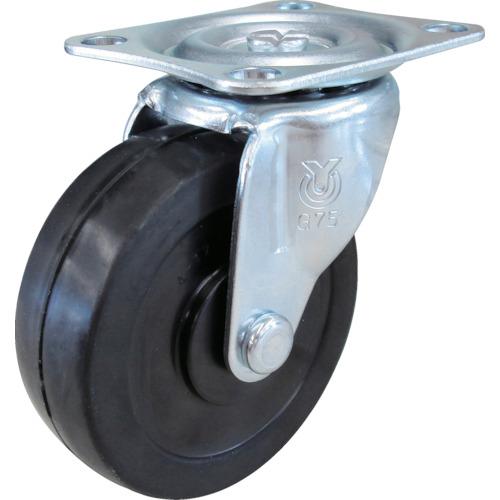

YUEI plate type rubber caster free 75 diameter

[Features] ● A standard compact caster, available from the smallest size.

[Applications] ● Lightweight trolley

[Specifications] ● Allowable load (daN): 50 ● Allowable load (kgf): 51.0 ● Wheel diameter D (mm): 75 ● Wheel width (mm): 25 ● Mounting pitch X (mm): 55 ● Mounting hole diameter P (mm): 8.8 ● Mounting height H (mm): 90 ● Mounting seat B (mm): 58 ● Mounting pitch Y (mm): 42 ● Mounting seat A (mm): 70 ● Allowable load (N): 500

[Specification 2] ● Plate type ● Swivel type ● Single bearing included

[Material/Finish] ●Metal fittings: Steel ●Metal fittings surface treatment: trivalent unichrome finish ●Wheels: rubber
