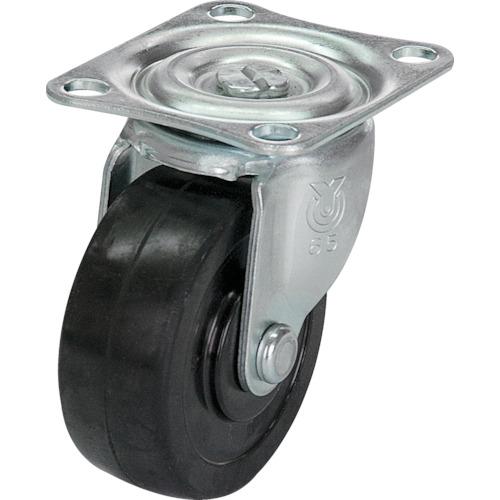

YUEI plate type rubber caster free 65 diameter

[Features] ● A standard compact caster, available from the smallest size.

[Applications] ● Lightweight trolley

[Specifications] ● Allowable load (daN): 40 ● Allowable load (kgf): 40.8 ● Wheel diameter D (mm): 65 ● Wheel width (mm): 25 ● Mounting pitch X (mm): 55 ● Mounting hole diameter P (mm): 8.8 ● Mounting height H (mm): 80 ● Mounting seat B (mm): 58 ● Mounting pitch Y (mm): 42 ● Mounting seat A (mm): 70 ● Allowable load (N): 400

[Specification 2] ● Plate type ● Flexible type ● Single bearing included

[Material/Finish] ●Metal fittings: Steel ●Metal fittings surface treatment: trivalent unichrome finish ●Wheels: rubber

[Set contents/accessories]
-

【Note】
-
