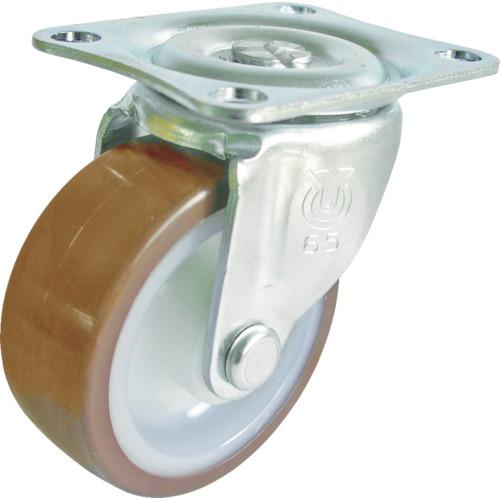

YUEI caster swivel wheel 38 diameter urethane wheel

[Features] ● A standard compact caster. We have it in stock from the smallest size. ●Urethane wheels are excellent in oil resistance and abrasion resistance.

[Applications] ● Lightweight trolley

[Specifications] - Allowable load (daN): 28 - Allowable load (kgf): 28.6 - Wheel diameter D (mm): 38 - Wheel width (mm): 16 - Mounting height H (mm): 50 - Mounting seat A ( mm): 46 ● Mounting seat B (mm): 38 ● Mounting pitch X (mm): 36 ● Mounting pitch Y (mm): 28 ● Mounting hole diameter P (mm): 5.3 ● Allowable load (N): 280

[Specification 2] ● Flexible type ● Plate type

[Materials/Finish] ●Metal fittings: Steel ●Metal fittings surface treatment: trivalent unichrome finish ●Wheels: nylon wheels, urethane

[Set contents/accessories]
-

【Note】
-
