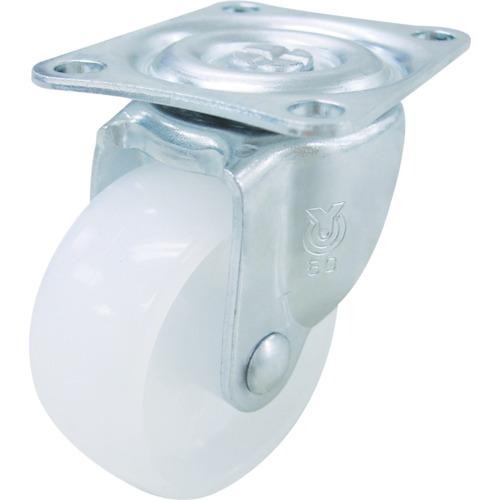

YUEI caster swivel wheel 25 diameter nylon wheel

[Features] ● A standard small caster, available from the smallest size.

[Applications] ● Lightweight trolley

[Specifications] - Allowable load (daN): 10 - Allowable load (kgf): 10.2 - Wheel diameter D (mm): 25 - Wheel width (mm): 12 - Mounting height H (mm): 35 - Mounting seat A ( mm): 35 ● Mounting seat B (mm): 30 ● Mounting pitch X (mm): 28 ● Mounting pitch Y (mm): 23 ● Mounting hole diameter P (mm): 4.2 ● Allowable load (N): 100

[Specification 2] ● Plate type ● Flexible type

[Material/Finish] ●Metal fittings: Steel ●Metal fittings surface treatment: trivalent unichrome finish ●Wheels: nylon

[Set contents/accessories]
-

【Note】
-
