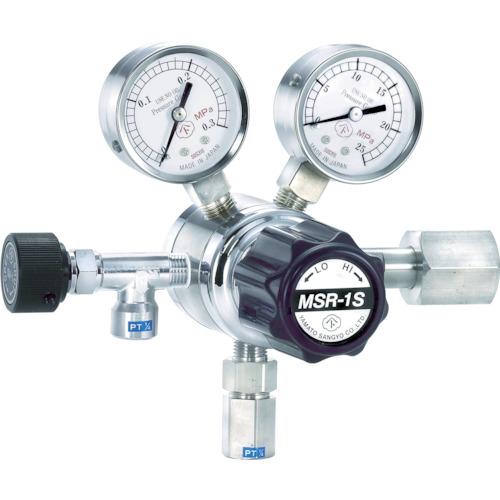

Two-stage pressure regulator for Yamato analyzer MSR-1S

[Features]● Pressure fluctuation is extremely small, making it ideal for high-purity gas. ●Gas purity is 99.999%.

[Applications] ●Analysis use, research use

[Specifications] ● Inlet connection: W22-14 (left) ● Fluid: Hydrogen ● Outlet connection: Rc1/4 with valve ● Standard flow rate: 120L/min

[Specification 2] ● Primary working pressure: 2 to 15 MPa ● Secondary working pressure: 0.05 to 0.6 MPa

[Materials/Finish] Body: Stainless steel

[Set contents/accessories]
-

【Note】
-
