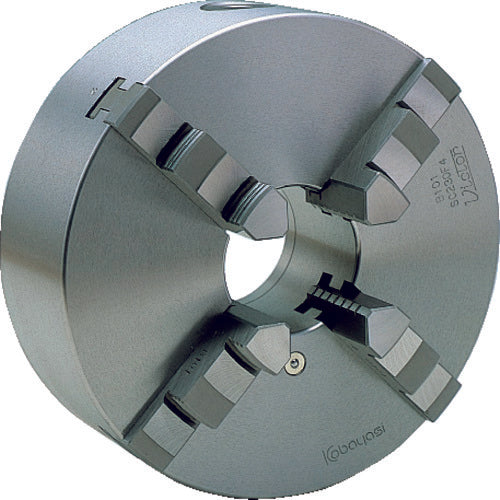

VICTOR scroll chuck SC230F4 9 inch 4 jaws integrated jaw
お気に入り機能をご利用いただくにはログインが必要です。
閉じる
【order ID】2391198
【basic item number】SC230F4***********************6043
【brand name】Kobayashi Iron Works Co.,Ltd.
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】Kobayashi Iron Works Co.,Ltd.
【Country of origin】Japan
【Weight】23KG
[Features] ● The claws are heat-treated for high hardness and have excellent durability. ●The inner and outer claws can be interchanged. ●Ideal for gripping round bars to square workpieces.
[Applications] ● Mainly for lathe processing.
[Specifications] - Chuck outer diameter (mm): 233 - Grasping force (kN): 35 - Outer diameter gripping (mm): 5.0 ~ 187 - Inner diameter gripping (mm): 63 - 175
[Specification 2] ●Mounting part conforms to JIS ●Integrated hard claw type (with inner and outer claws) ●Rear mounting with 3 bolts for all sizes
[Material/Finish]
-
[Set contents/accessories]
-
【Note】
-
[Applications] ● Mainly for lathe processing.
[Specifications] - Chuck outer diameter (mm): 233 - Grasping force (kN): 35 - Outer diameter gripping (mm): 5.0 ~ 187 - Inner diameter gripping (mm): 63 - 175
[Specification 2] ●Mounting part conforms to JIS ●Integrated hard claw type (with inner and outer claws) ●Rear mounting with 3 bolts for all sizes
[Material/Finish]
-
[Set contents/accessories]
-
【Note】
-
